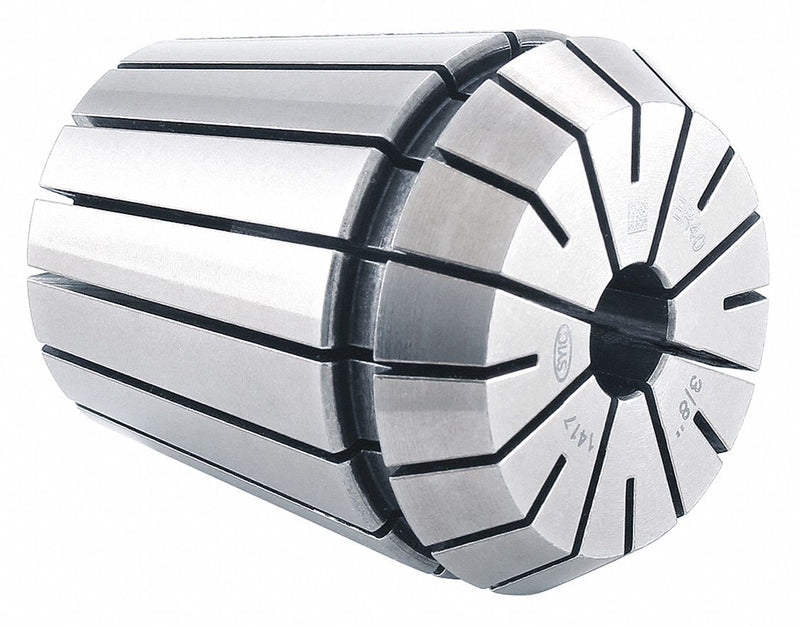

Techniks 04240-7/32 Collet, ER40, 7/32 in
UPC: | Harmonization / Schedule B : 8466.20.8035
Country of Origin: Taiwan, Province of China | Shipping Weight: 0.55 lbs
Original price
$43.56
-
Original price
$43.56
Original price
$43.56
$43.56
-
$43.56
Current price
$43.56
Collet, ER40, Round, Overall Length 1 13/16 in
| Collet Series | ER40 |
|---|---|
| Range | 0.219" to 0.203" |
| Coolant Through | Yes |
| For Use With | BR Collet Chuck Series, DR Collet Chuck Series, ER Collet Chuck Series, ESX Collet Chuck Series, RD Collet Chuck Series |
| Coolant Fed | Coolant Through |
| Face Shape | Round |
| Measurement System | Inch |
| TIR Max. | 0.0002 in |
| Collet Type | Standard |
| Compatible with Product Type | AR, BR Series, DR, ESX, RD |
| Number of Slots | 8 |
| Material | High-Carbon Steel |
| Operating Pressure - Maximum | 2,000 psi |
| T.I.R. Tolerance | 0.0002 in |
| Collapse Range - Minimum | 0.179 in |
| Compatible Collet Chuck | AR, BR, DR, ESX, RD |
| Bore Shape | Round |
| Torque - Maximum | 130 ft-lb |
| Finish | Precision Ground |
| Taper Angle | 8 Degrees |
| Collapse Range - Maximum | 0.218 in |
| Country of Origin | Taiwan, Province of China |
