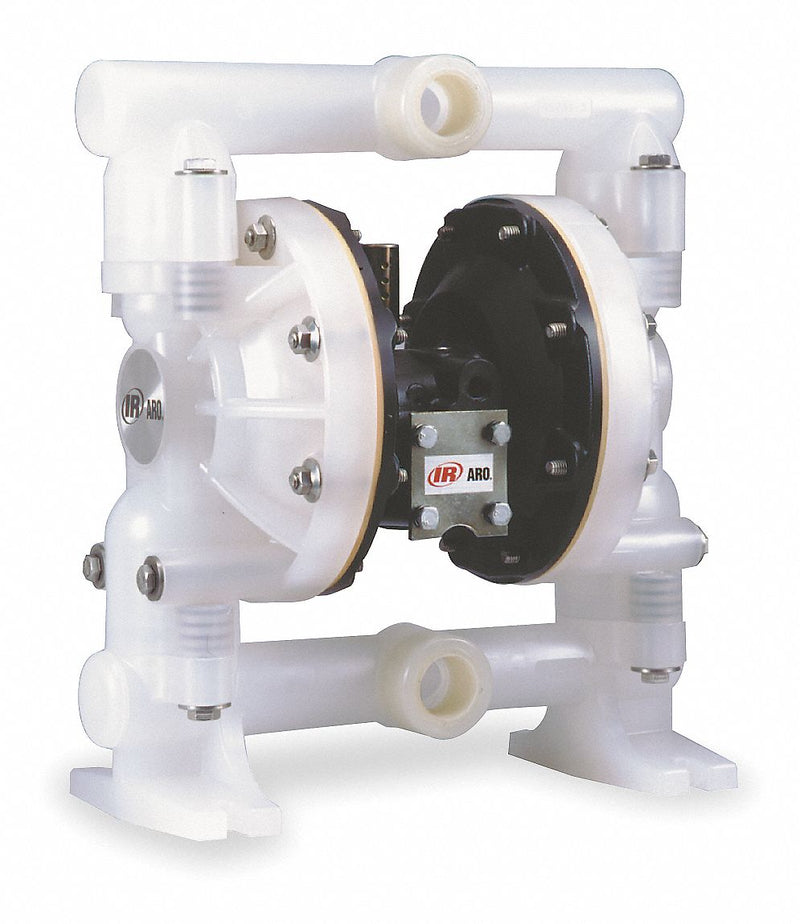

Aro 6661AJ-322-C Double Diaphragm Pump, Polypropylene Body, 1 in, NPT Connection, 47 gpm, 275 ft Max. Head
UPC: | Harmonization / Schedule B : 8413.50.0050
Country of Origin: United States | Shipping Weight: 22.9 lbs
Original price
$2,200.45
-
Original price
$2,200.45
Original price
$2,200.45
$2,200.45
-
$2,200.45
Current price
$2,200.45
Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 48 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1 in, Media Intake Connection Type NPTF, Media Intake Location Center
| Housing Material - Pumps | Polypropylene |
|---|---|
| Pump Assembly Type | Bolt |
| Manifold Connection | Single Port |
| Valve Material | Buna-N |
| Valve Type | Ball |
| Air Consumption (Maximum) | 45 scfm |
| Air Intake Connection Type | NPT |
| Check Seat Material | Polypropylene |
| Diaphragm Material | Buna-N |
| Media Temperature (Maximum) | 175 Degrees F |
| Media Temperature (Minimum) | 10 Degrees F |
| Operating Pressure (Maximum) | 120 psi |
| Agency Compliance | CE, REACH, RoHS |
| Self-Priming Wet | 20 ft |
| Pump Operation Type | Air |
| Self-Priming Dry | 15 ft |
| Inlet/Outlet | 1 in |
| Manifold Connection Type | NPT |
| Media Discharge Location | Top |
| Chemical Compatibility | Antifreeze, Calcium Carbonate, Oil-Based Paint, Potassium Hydroxide 50%, Water |
| Series Family | Pro |
| For Use With Potable Systems | No |
| Flow Rate @ 60 psi | 40.8 gpm |
| Nameplate Voltage | N |
| Flow Rate @ 50 psi | 39 gpm |
| Series | PRO |
| Wetted Housing Material | Polypropylene |
| Flow Rate @ 120 psi | 48 gpm |
| Air Intake Pressure (Maximum) | 120 psi |
| Priming | Self-Priming |
| Feet of Head (Maximum) | 275 ft |
| Media Discharge Connection Type | NPT |
| Flow Rate @ 40 psi | 36 gpm |
| Media Intake Connection Type | NPT |
| Flow Rate @ 80 psi | 44 gpm |
| Flow Rate @ 90 psi | 45.2 gpm |
| Media Intake Location | Bottom |
| Flow Rate @ 70 psi | 42 gpm |
| Flow Rate @ 100 psi | 46 gpm |
| Viscosity (Maximum) | 40,000 cps |
| Flow Rate (Maximum) | 47 gpm |
| NPSHr | 40 ft of head |
| Wetted Body Material | Polypropylene |
| Material Conductivity | Non-Conductive |
| Media Intake Port Configuration | Center Horizontal |
| Displacement Per Stroke | 0.085 gal |
| Media Discharge Port Configuration | Center Horizontal |
| Diaphragm Reinforcement | Fabric Reinforced |
| Manifold Connection Standard | NPT |
| Center Section Material | Aluminum |
| Manifold Port Connection Type | Single Port |
| Includes Solenoid | No Solenoid Included |
| Diaphragm Base Material | Buna-N |
| Fluid Chamber Assembly Type | Bolted |
| Mounting Hardware Material | Stainless Steel |
| Country of Origin | United States |
