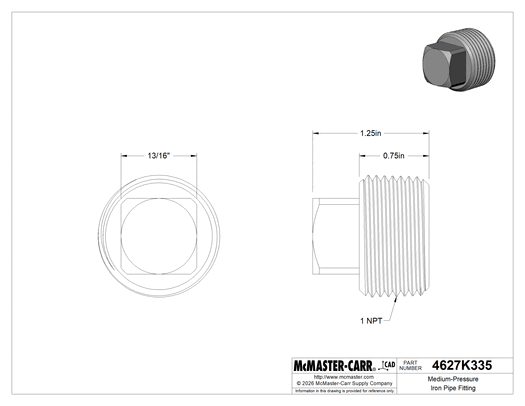

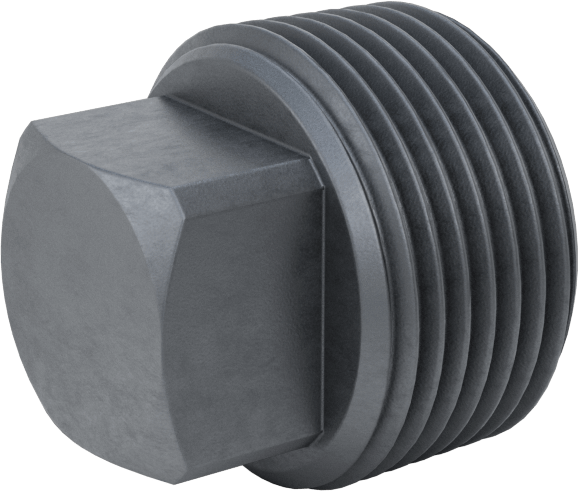

McMaster 4627K335 Medium-Pressure Iron Pipe Fitting, Plug with External Square Drive, 1 NPT
UPC: | Harmonization / Schedule B : 7307.19.9090
Country of Origin: United States | Shipping Weight: 0.23 lbs
Original price
$53.71
-
Original price
$53.71
Original price
$53.71
$53.71
-
$53.71
Current price
$53.71
With better strength than our low-pressure iron and steel pipe fittings, these can handle medium-pressure applications. They are for use in noncorrosive environments.
| Pressure Rating | Medium Pressure |
| Shape | Cap and Plug |
| Drive Style | External Square |
| Fitting Type | Plug |
| Fitting Connection | NPT Male |
| Pipe Size | 1 |
| Construction | Solid |
| Pressure Class | 300 |
| Body Shape | Square |
| Material | Iron |
| Maximum Pressure @ Temperature | 400 psi @ 72° F |
| Maximum Steam Pressure @ Temperature | 300 psi @ 550° F |
| Certification | UL Listed |
| Connects To | Pipe |
| Class | 300 |
| Material | Steel |
| For Pipe Material | Steel |
| For Pipe Schedule | 80 |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
| Length | 1 1/4" |
| Specifications Met | ASME B1.20.1, ASME B16.14, ASTM A126 |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 730719.9090 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
