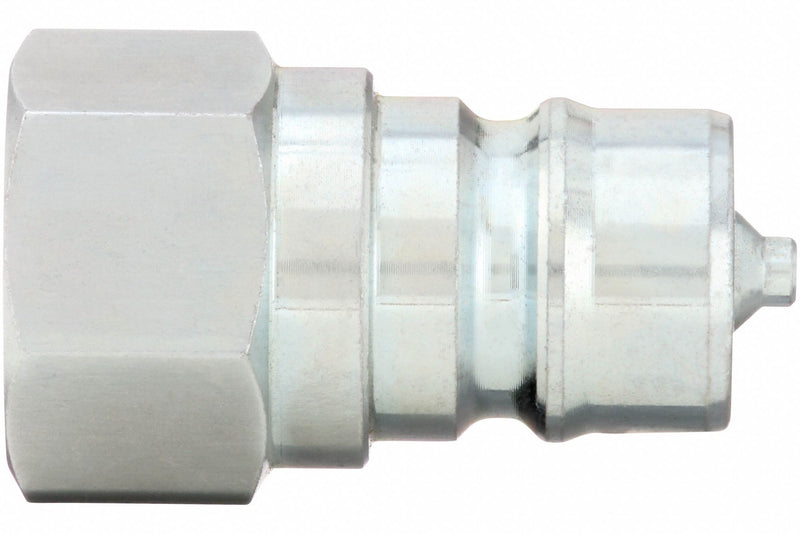

Parker 6602-4-4 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel
UPC: | Harmonization / Schedule B : 8481.20.0050
Country of Origin: United States | Shipping Weight: 0.005 lbs
Original price
$26.80
-
Original price
$26.80
Original price
$26.80
$26.80
-
$26.80
Current price
$26.80
Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 1/4 in, Female, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 11.36 lpm
| Thread Size | 1/4"-18 |
|---|---|
| Length | 1-9/64" |
| Coupler Body Size | 1/4" |
| Coupler Thread Size | 1/4"-18 |
| Overall Length | 1 7/16 in |
| Coupling Size | 1/4 in |
| Max. Outside Dia. | 7/8 in |
| Wire Rope Length | 1 7/16 in |
| Body Material | Steel |
| Seal Material | Buna-N |
| Coupling Locking Type | Sleeve |
| Max. Pressure | 5000 psi |
| Connection Type | Threaded |
| For Use With | ISO 7241-1 Series A Coupler |
| Series | 6600 |
| Coupler Flow Rate | 3.0 gpm |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Coupler Body Material | Steel |
| Standards | ISO 7241-1 Series A |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Coupler Interchange Type | ISO 7241-1 Series A |
| Valve Design | Poppet |
| Bearing Material | Stainless Steel |
| Coupler Finish | Zinc Plated |
| Parker Interchange | 6602-4-4 |
| Locking Mechanism | Ball |
| Coupler Connection Type | FNPT |
| Hansen Interchange | HA-15212-00 |
| Coupling Component | Plug |
| Max. Working Pressure @ 70 F | 5,000 psi |
| Hose Fitting Gender | Female |
| Valve Type | Poppet |
| Safeway Interchange | S561-2 |
| Includes Bearing | Yes |
| Includes Valve | Yes |
| Fitting Type | Female NPTF |
| Finish/Coating | Plain |
| Max. Flow Rate | 11.36 lpm |
| Snap-Tite Interchange | 61N4-4F |
| Includes Shut Off | Yes |
| Country of Origin | United States |
