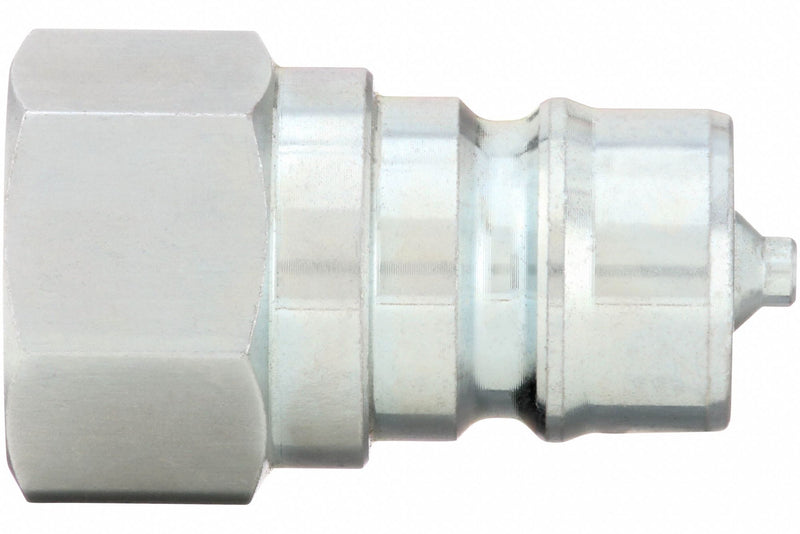

Parker 6602-6-6 Hydraulic Quick Connect Hose Coupling, Plug x Female NPT Threaded, Steel, Plug, Sleeve, Steel
UPC: | Harmonization / Schedule B : 8481.20.0050
Country of Origin: South Korea | Shipping Weight: 0.1 lbs
Original price
$40.01
-
Original price
$40.01
Original price
$40.01
$40.01
-
$40.01
Current price
$40.01
Hydraulic Quick Connect Hose Coupling, Plug, 6600 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 22.71 lpm
| Thread Size | 3/8"-18 |
|---|---|
| Length | 1-5/8" |
| Coupler Thread Size | 3/8"-18 |
| Coupler Body Size | 3/8" |
| Overall Length | 1 5/8 in |
| Coupling Size | 3/8 in |
| Max. Outside Dia. | 1 in |
| Wire Rope Length | 1 5/8 in |
| Body Material | Steel |
| Seal Material | Buna-N |
| Coupling Locking Type | Sleeve |
| Max. Pressure | 4000 psi |
| Connection Type | Threaded |
| For Use With | ISO 7241-1 Series A Coupler |
| Series | 6600 |
| Parker Interchange | 6602-6-6 |
| Bearing Material | Stainless Steel |
| Coupler Body Material | Steel |
| Locking Mechanism | Ball |
| Coupler Interchange Type | ISO 7241-1 Series A |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Standards | ISO 7241-1 Series A |
| Coupler Flow Rate | 6.0 gpm |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Coupler Connection Type | FNPT |
| Valve Design | Poppet |
| Coupler Finish | Zinc Plated |
| Hansen Interchange | HA-15222-00 |
| Coupling Component | Plug |
| Includes Bearing | Yes |
| Finish/Coating | Plain |
| Max. Flow Rate | 22.71 lpm |
| Valve Type | Poppet |
| Snap-Tite Interchange | 61N6-6F |
| Includes Valve | Yes |
| Safeway Interchange | S561-3 |
| Includes Shut Off | Yes |
| Max. Working Pressure @ 70 F | 4,000 psi |
| Fitting Type | Female NPTF |
| Hose Fitting Gender | Female |
| Country of Origin | Korea, Republic of |
