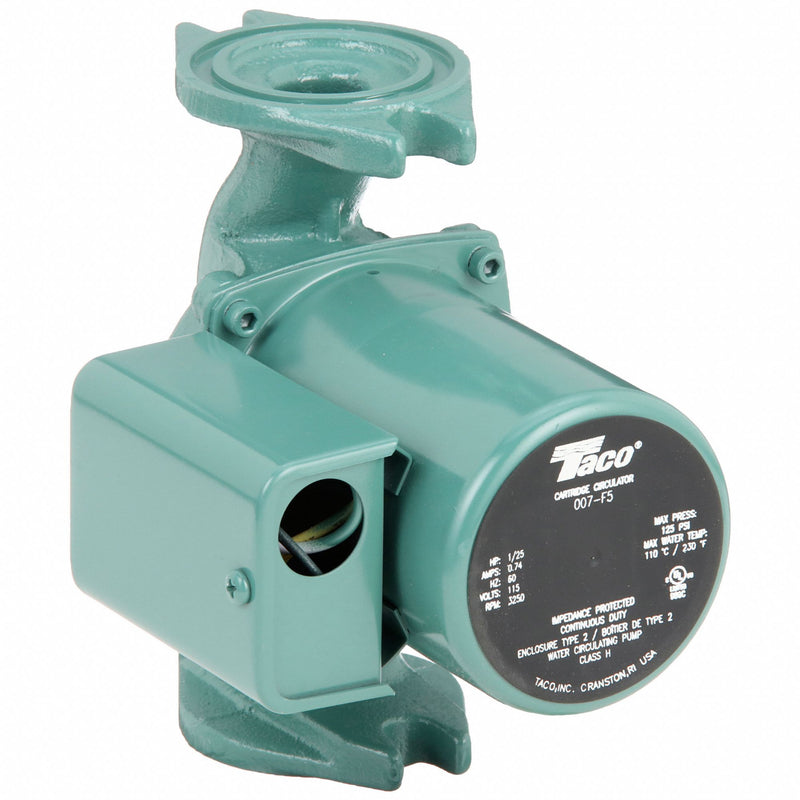

Taco 007-F5 Hydronic Circulating Pump, 1/25 hp HP, 115V AC, Cast Iron, 1, 23 gpm, 10 ft Max. Head, Inline
UPC: 687752187311 | Harmonization / Schedule B : 8413.70.2005
Country of Origin: United States | Shipping Weight: 7.6 lbs
Original price
$292.69
-
Original price
$292.69
Original price
$292.69
$292.69
-
$292.69
Current price
$292.69
Hydronic Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/25 hp, Maximum Feet of Head 10 ft, Maximum Flow Rate @ 10 Feet of Head 0 gpm, Maximum Flow Rate @ 1 Foot of Head 22 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 00, Maximum Flow Rate @ 5 Feet of Head 15 gpm, Series 007
| Inlet/Outlet Size | 3/4 in to 1-1/2 in |
|---|---|
| Face to Face Dimension | 6 3/8 in |
| Overall Width | 4.75 in |
| Overall Length | 6.13 in |
| Manufacturer Warranty Length | 3 yr |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Compatible Discharge Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| For Discharge Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Wire Rope Length | 6.13 in |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/25 hp |
| Series | 007 |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 22 gpm @ 1 ft |
| Maximum Feet of Head | 10 ft |
| Min. GPM @ Head | 4 gpm @ 9 ft |
| Connection Type | Flange |
| Shut-Off | 10 ft |
| Shaft Material | Ceramic |
| Thermal Protection | Impedance |
| Pump Mount | In Line |
| Amps | 0.71 A |
| Mechanical Seal | No |
| Drive Type | Direct |
| Features | Maintenance Free, Wet Rotor |
| Best Efficiency GPM @ Head | 12 gpm @ 7 ft |
| Standards | UL-CUS |
| Includes | Flange Gaskets, Impedance Thermal Proctection |
| Loop Configuration | Closed |
| Impeller Material | Polypropylene |
| For Use With Potable Systems | Yes |
| Minimum Media Temperature | 40 Degrees F |
| Maximum Flow Rate @ 15 Feet of Head | 0 gpm |
| Maximum RPM | 3,250 RPM |
| Maximum Flow Rate @ 5 Feet of Head | 15 gpm |
| Series Family | 00 |
| Maximum Operating Pressure | 125 psi |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Rotor Type | Wet |
| Pump Housing Material | Cast Iron |
| Body Gasket Material | EPDM |
| Flange or Union Included | No |
| Maximum Flow Rate @ 10 Feet of Head | 0 gpm |
| Maximum Media Temperature | 230 Degrees F |
| Nameplate Voltage | 115V AC |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 1 Feet of Head | 22 gpm |
| Revolutions Per Minute - Maximum | 3,250 RPM |
| Includes Flange | No Flange Included |
| Flow Rate - Maximum | 23 gpm |
| Media Temperature - Minimum | 40 Degrees F |
| Full Load Current | 0.71 A |
| Pump Casing Material | Cast Iron |
| Feet of Head - Maximum | 10 ft |
| For Low Lead Compliance Level | EX |
| Media Temperature - Maximum | 230 Degrees F |
| Connection Standard | Flange |
| Operating Pressure - Maximum | 125 psi |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Includes Volute | Volute Included |
| Country of Origin | United States |
