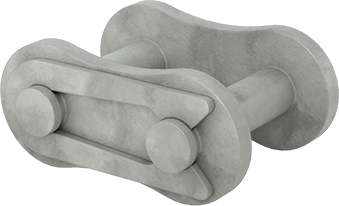

McMaster 7210K425 Connecting Link for ANSI Number 60 Single Strand High-Strength Corrosion-Resistant Roller Chain
Pair this chain with sprockets to transmit power between rotating shafts. Like the chain on a bike, the side plates have a figure-eight shape that grips the sprockets without slipping.
Lubrication is key to smooth operation and long chain life. Routinely apply oil by hand or install an oil dispenser for continuous lubrication.
Corrosion-Resistant-Coated Steel—Combines the strength of steel with the corrosion resistance of stainless steel. The coating has been tested to withstand 500 hours of salt spray, so it holds up well in wet and outdoor conditions.
Connecting Link—Use a single link to join both ends of your chain. Start by removing the spring clip or cotter pin from the link’s side plate. Then, slide the link pins into the mating rollers at each end of your chain and snap the clip back on. Also known as master links.
|
Roller Chain Type
|
Standard |
|
Strand Type
|
Single |
|
Material
|
Corrosion-Resistant-Coated Steel |
|
Link Type
|
Connecting |
|
Component
|
Link |
|
Roller Chain
|
|
|
Trade Number
|
60 |
|
Standard
|
ANSI |
|

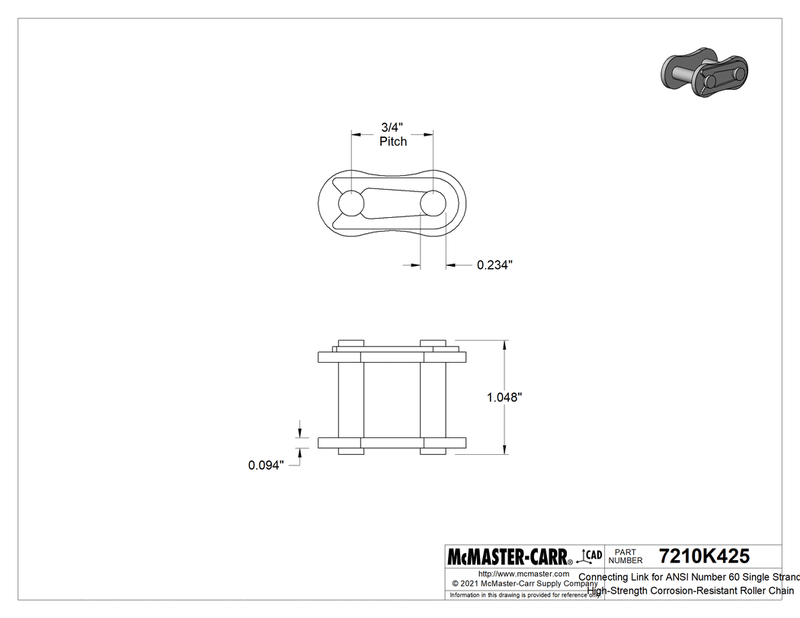

Pitch
|
3/4" |
|
Roller Diameter
|
0.469" |
|
Roller Width
|
1/2" |
|
Working Load
|
2,450 lb. |
|
Chain Pitch Type
|
Single |
|
Chain Style
|
Roller |
|
Performance
|
Corrosion Resistant |
|
Country of Origin
|
Japan |
|
DFARS Compliance
|
Specialty Metals COTS-Exempt |
|
Export Control Classification Number (ECCN)
|
EAR99 |
|
REACH Compliance
|
Not Compliant |
|
RoHS Compliance
|
RoHS 3 (2015/863/EU) Compliant |
|
Schedule B Number
|
731519.0000 |
|
U.S.–Mexico–Canada Agreement (USMCA) Qualifying
|
No |
