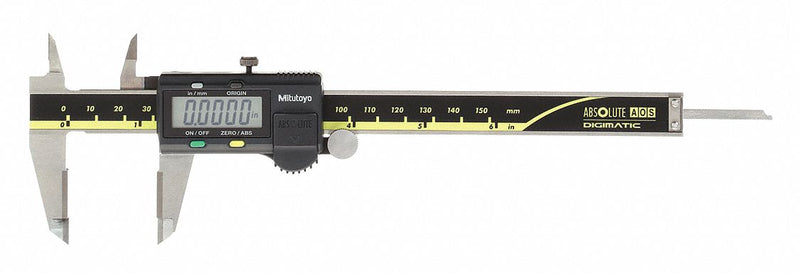

Mitutoyo 500-160-32 Carbide Jaw Digital Caliper: 0 in to 6 in /0 mm to 150 mm, Inch/Metric, Cabled
UPC: 603908409502 | Harmonization / Schedule B : 9017.30.4000
Country of Origin: Japan | Shipping Weight: 0.95 lbs
Original price
$463.06
-
Original price
$463.06
Original price
$463.06
$463.06
-
$463.06
Current price
$463.06
The MITUTOYO 500-160-30 Absolute Digital Caliper is a high-quality tool that will meet the demands of your job. The carbide jaw digital caliper can measure from 0 in to 6 in, and has a resolution of 0.0005 in/0.01 mm. This stainless steel digital caliper has an accuracy of +/-0.001 inches, with a measuring range of 0 to 150mm or 0 to 6in. It also features origin set, zero, data output, inch/mm, low voltage and counting value composition error functions. The MITUTOYO Carbide Jaw Digital Caliper is the perfect companion for your next project.
| Caliper Material | Stainless Steel |
|---|---|
| Caliper Range | 0-6 in /0-150mm |
| Accuracy | +/-0.0010 in |
| SPC Output | No |
| Resolution | 0.0005 in/0.01 mm |
| IP Rating | Not Rated |
| Absolute Positioning | Yes |
| Features | Rolling Thumb Wheel, Control Buttons On Face, Zero, On/Off and Inch/mm, Absolute Scales, Carbide Jaws |
| Long Form Calibration Certificate | No |
| Caliper Grouping | Digital Caliper |
| Graduations - Lower Scale | 0 in |
| Case Type | Plastic Case |
| Jaw Actuation Type | Thumb Wheel |
| Dust Resistant | Yes |
| Maximum Measurement - Inch | 6 in |
| Coolant Resistant | No |
| Left-Handed Operation | No |
| Includes Battery | Yes |
| Jaw Shape | Standard |
| Included Certification | Certificate of Inspection |
| Minimum Measurement - Fractional Inch | 0 in |
| With Locking Nut | Yes |
| Measurements | 4-Way |
| Includes Case | Yes |
| Maximum Measurement - mm | 150 mm |
| Display Type | LCD |
| Jaw Material | Carbide-Tipped |
| Functions | Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error |
| Repeatability | 0.0005 in/0.01 mm |
| Range | 0 in to 6 in, 0 to 150 mm |
| Water Resistant | No |
| Graduations - Upper Scale | 6 in |
| Linear Encoder Type | Electrostatic Capacitance |
| Minimum Measurement - Inch | 0 in |
| Minimum Measurement - mm | 0 mm |
| Measures Step | Yes |
| Inches Measured - Maximum | 6 in |
| Data Output Type | Cabled |
| Battery Type | SR44 |
| Millimeters Measured - Maximum | 150 mm |
| Inches Measured - Minimum | 0 in |
| Measurement Type | Depth, Inside, Outside, Step |
| Millimeters Measured - Minimum | 0 mm |
| Product Type | Digital Caliper |
| Country of Origin | Japan |
