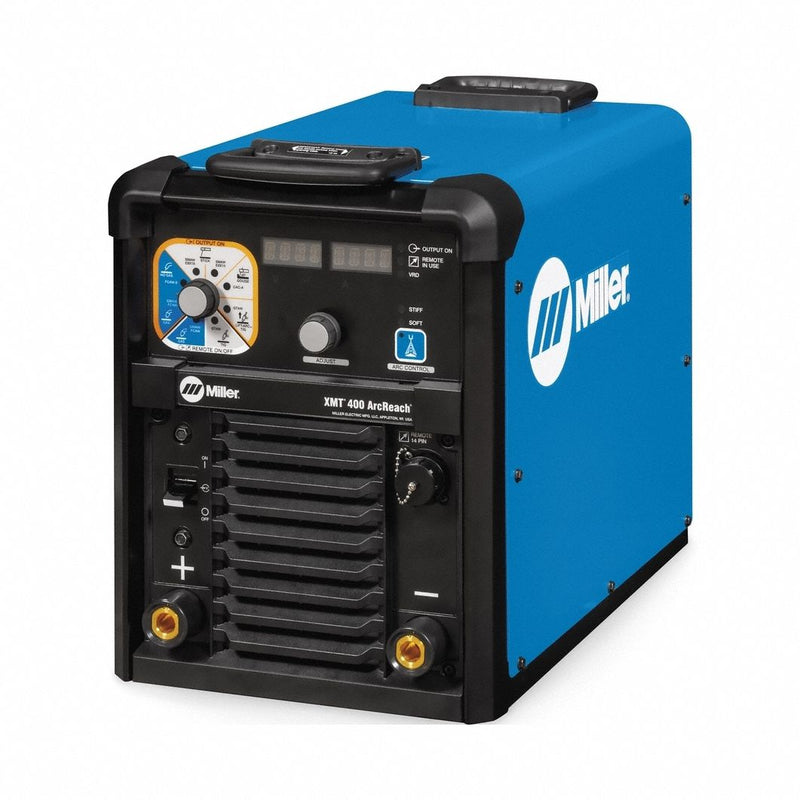

Miller Electric 907865004 ArcReach Multiprocess Welder, Dinse
UPC: 715959717076 | Harmonization / Schedule B : 8515.39.0040
Country of Origin: United States | Shipping Weight: 78.0 lbs
Original price
$11,636.32
-
Original price
$11,636.32
Original price
$11,636.32
$11,636.32
-
$11,636.32
Current price
$11,636.32
XMT(R) 400 ArcReach(R), Series XMT 400 ArcReach, Input Voltage 208/220/230/240/380/400/440/460/480/575/600V AC, Phase Single/Three, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 400 A, TIG Welding Maximum Output Current 425 A
| Series | XMT |
|---|---|
| Phase | Single/Three |
| Input Voltage | 208/220/230/240/380/400/440/460/480/575/600V AC |
| Includes | Machine Only |
| Amperage Range | 15 to 425 A |
| Application | Construction & Fabrication, Heavy Equipment, Shipbuilding |
| Features | ArcReach(R), Auto-Line(TM), Cable Length Compensation, Adjust While Welding, Control Panel Lockout |
| Welding Processes | Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG Welding (GMAW), MultiprocessPulsed MIG (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW) |
| Weight | 75 lb |
| Polarity | DC |
| For Material Type | Aluminum, Specialty Metals, Stainless Steel, Steel |
| Welding Mode | CC/CV |
| MIG Welding Minimum Output Current | 15 A |
| Open Circuit Voltage | 91 V DC |
| Color | Blue/Black |
| Input Frequency | 50/60 Hz |
| TIG Welding Maximum Output Current | 425 A |
| Stick Welding Minimum Output Current | 15 A |
| Model | XMT 400 ArcReach Dinse |
| MIG Welding Maximum Output Current | 425 A |
| Enhanced Process | Pulsed MIG (GMAW-P), RMD |
| Stick Welding Maximum Output Current | 425 A |
| TIG Welding Minimum Output Current | 15 A |
| Plug Type | Bare Leads |
| Amperage Stick - Minimum | 15 A |
| Amperage MIG - Minimum | 15 A |
| Amperage Stick - Maximum | 400 A |
| Process | Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW) |
| TIG Arc Start Feature | Lift Arc Start |
| Remote Connection Type | 14-Pin (Miller) |
| Amperage TIG - Maximum | 425 A |
| Welding Power Source Type | CC/CV |
| Amperage TIG - Minimum | 15 A |
| Amperage MIG - Maximum | 425 A |
| Maximum Wire Feed Speed | 19.8 m/min |
| Rated Output @ Duty Cycle (TIG) | 350 A @ 24 V, 100%, 400 A @ 26 V, 60%, 425 A @ 27 V, 30% |
| Rated Output @ Duty Cycle (Stick) | 350 A @ 34 V, 100%, 400 A @ 36 V, 60% |
| Minimum Wire Feed Speed | 1.3 m/min |
| Rated Output @ Duty Cycle (MIG) | 350 A @ 31.5 V, 100%, 400 A @ 34 V, 60%, 425 A @ 35.3 V, 30% |
| Country of Origin | United States |
