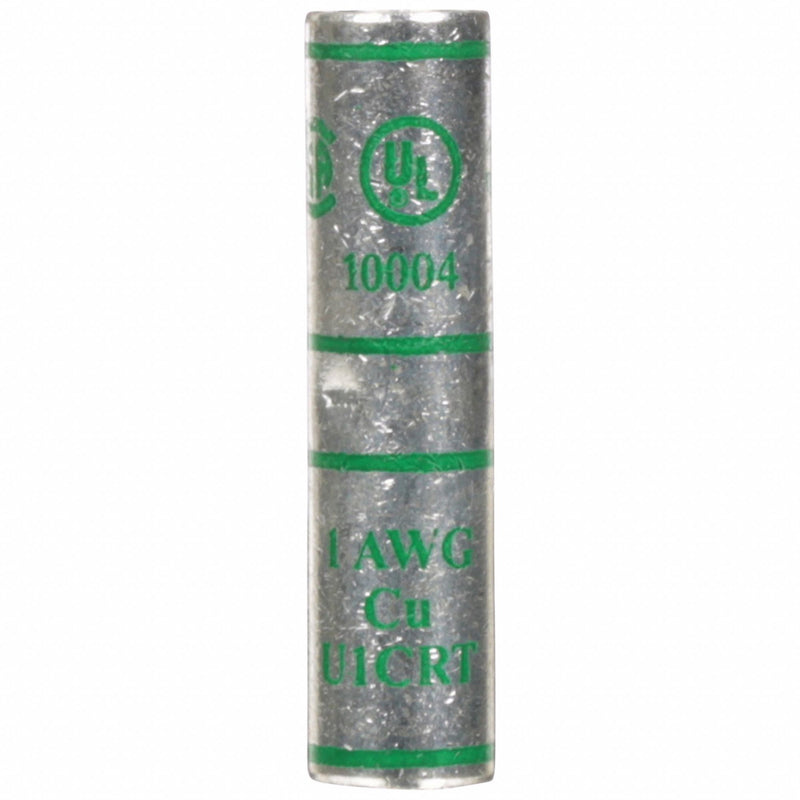

3M 10004 Open Barrel Splice, 1 AWG, Green Code, 1.88 in, Copper
UPC: 054007127581 | Harmonization / Schedule B : 8535.90.8040
Country of Origin: Chile | Shipping Weight: 0.4 lbs
Original price
$288.95
-
Original price
$288.95
Original price
$288.95
$288.95
-
$288.95
Current price
$288.95
Open Barrel Splices, Color Code Green, Die Code 13455, For Wire Type Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 1 AWG, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438, Barrel Inside Diameter 0.36 in, Barrel Outside Diameter 0.46 in, Compatible Installation Tool Model Number 10000 to 11000, Contact Finish Tin, Contact Material Copper
| Type | Splice |
|---|---|
| Color | Green |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Minimum Operating Temperature | 73 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Die Code | 13455 |
| Standards | CSA Certified, UL Listed |
| Material | High Conductivity Copper |
| Compatible Installation Tool Model Number | 10000 to 11000 |
| For Wire Type | Stranded |
| Special Features | Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Contact Finish | Tin |
| Contact Material | Copper |
| Series | 10000 |
| Color Code | Green |
| Country of Origin | Chile |
