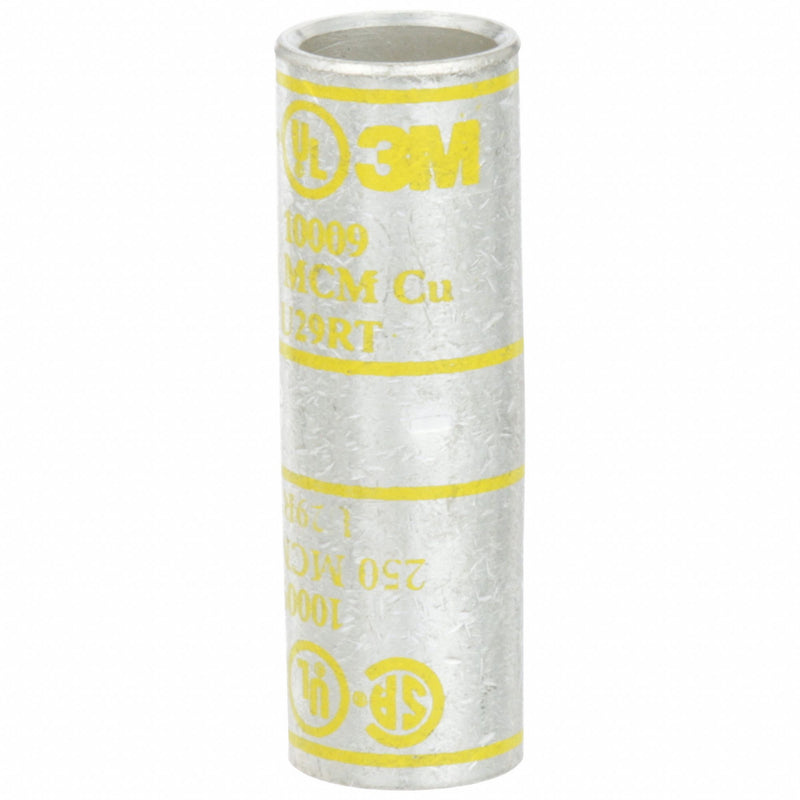

3M 10009 Open Barrel Splice, 250 kcmil, Yellow Code, 2.25 in, Copper
UPC: 054007128328 | Harmonization / Schedule B : 8535.90.8040
Country of Origin: Chile | Shipping Weight: 0.3 lbs
Original price
$123.27
-
Original price
$123.27
Original price
$123.27
$123.27
-
$123.27
Current price
$123.27
Open Barrel Splices, Color Code Yellow, Die Code 13456, A29R, W166, 13463, U29RT, For Wire Type Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 250 kcmil, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified, UL Listed, Contact Finish Tin, Contact Material Copper, Minimum Operating Temperature 73 Degrees F
| Type | Splice |
|---|---|
| Color | Yellow |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Minimum Operating Temperature | 73 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Standards | CSA Certified, UL Listed |
| Material | High Conductivity Copper |
| Die Code | 13456, A29R, W166, 13463, U29RT |
| Special Features | Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Contact Finish | Tin |
| Series | 11000 |
| For Wire Type | Stranded |
| Contact Material | Copper |
| Color Code | Yellow |
| Country of Origin | Chile |
