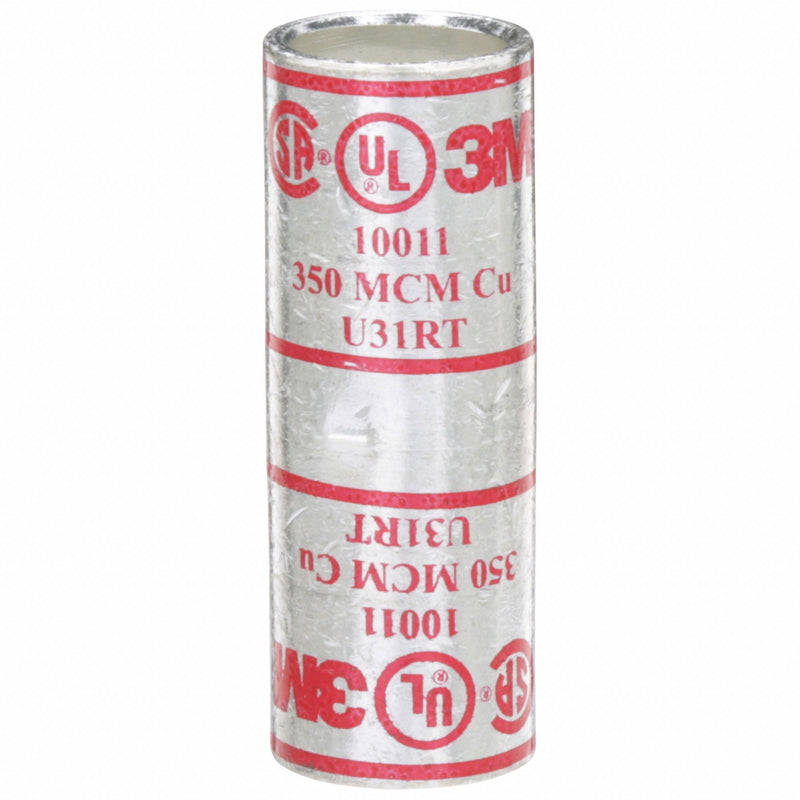

3M 10011 Open Barrel Splice, 350 kcmil, Red Code, 2.38 in, Copper
UPC: 054007128731 | Harmonization / Schedule B : 8535.90.8040
Country of Origin: Chile | Shipping Weight: 0.6 lbs
Original price
$139.69
-
Original price
$139.69
Original price
$139.69
$139.69
-
$139.69
Current price
$139.69
Open Barrel Splices, Color Code Red, Die Code 71, 13461, U31RT, For Wire Type Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 350 kcmil, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified, UL Listed, Contact Finish Tin, Contact Material Copper, Minimum Operating Temperature 73 Degrees F
| Type | Splice |
|---|---|
| Color | Red |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Minimum Operating Temperature | 73 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Standards | CSA Certified, UL Listed |
| Material | High Conductivity Copper |
| Die Code | 71, 13461, U31RT |
| Special Features | Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Color Code | Red |
| For Wire Type | Stranded |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | Chile |
