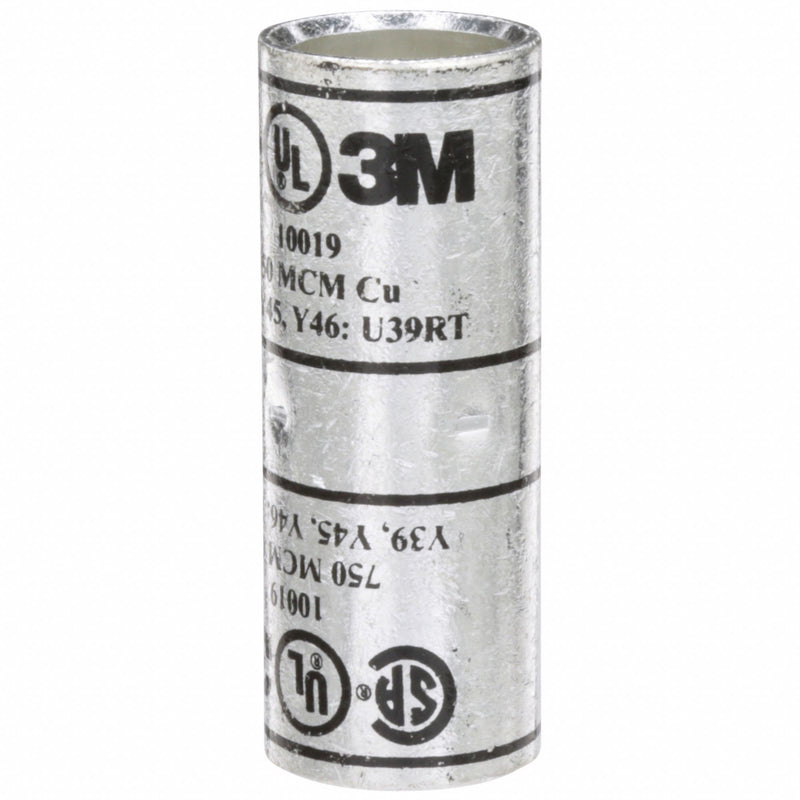

3M 10019 Open Barrel Splice, 750 kcmil, Black Code, 3.38 in, Copper
UPC: 054007129158 | Harmonization / Schedule B : 8535.90.8040
Country of Origin: Chile | Shipping Weight: 1.7 lbs
Original price
$423.91
-
Original price
$423.91
Original price
$423.91
$423.91
-
$423.91
Current price
$423.91
Open Barrel Splices, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Black, Die Code 106, For Conductor Material Copper, For Wire Type Solid, Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 750 kcmil, Number of Crimps 6, Overall Length 3.38 in, Maximum Operating Temperature 221 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438
| Type | Crimp |
|---|---|
| Color | Black |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Minimum Operating Temperature | 73 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Die Code | 106 |
| Standards | CSA Certified, UL Listed |
| Material | Copper |
| Seam Style | Seamless |
| Number of Crimps | 6 |
| Compatible with Product Type | Copper Conductor |
| Compatible with Series | 11000 |
| Compatible Installation Tool Model Number | 10000 to 11000 |
| Special Features | Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| For Wire Type | Solid, Stranded |
| For Conductor Material | Copper |
| Finish | Tin Plated |
| Contact Finish | Tin |
| Contact Material | Copper |
| Barrel Finish | Tin Plated |
| Color Code | Black |
| Termination Style | Crimp |
| Series | 10000 |
| Country of Origin | Chile |
