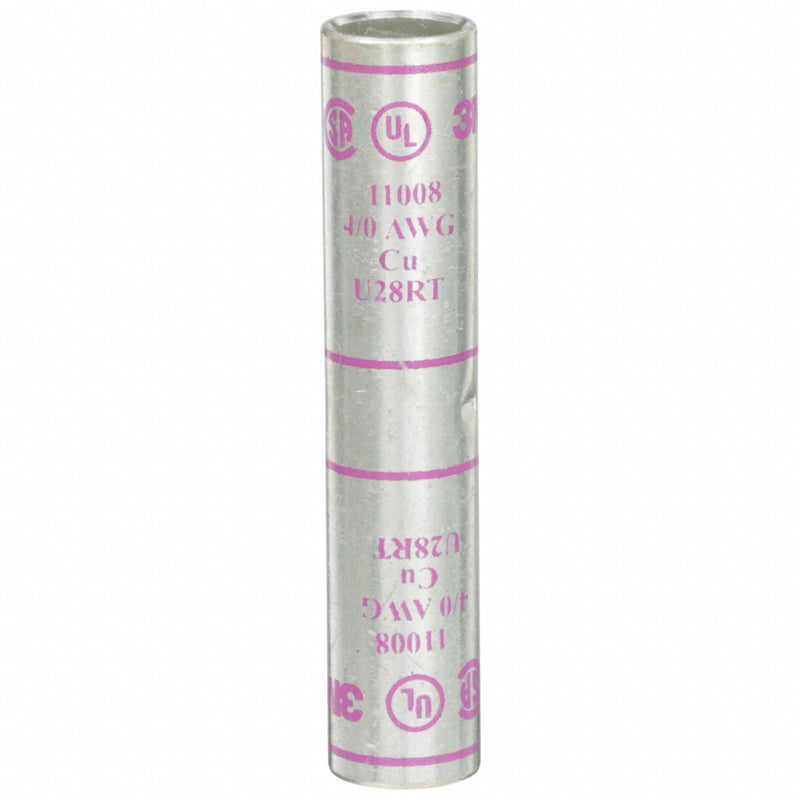

3M 11008 Open Barrel Splice, 4/0 AWG, Purple Code, 3.38 in, Long Barrel
UPC: 054007128243 | Harmonization / Schedule B : 8535.90.8040
Country of Origin: Chile | Shipping Weight: 1.57 lbs
Original price
$305.30
-
Original price
$305.30
Original price
$305.30
$305.30
-
$305.30
Current price
$305.30
Open Barrel Splices, Color Code Purple, Die Code 54, For Wire Type Solid, Stranded, Material High Conductivity Copper, Minimum Wire Size Not Applicable, Maximum Wire Size 4/0 AWG, Maximum Operating Temperature 221 Degrees F, Standards CSA Certified File No. 015503, UL Listed, UL Standard 486A-486B File No. E23438, Barrel Inside Diameter 0.55 in, Barrel Outside Diameter 0.69 in, Compatible Installation Tool Model Number 10000 to 11000, Contact Finish Tin, Contact Material Copper
| Type | Crimp |
|---|---|
| Color | Purple |
| Insulation Material | None |
| Maximum Voltage | 35 kV |
| Minimum Operating Temperature | 73 Degrees F |
| Maximum Operating Temperature | 221 Degrees F |
| RoHS Compliant | Yes |
| Standards | CSA Certified, UL Listed |
| Material | High Conductivity Copper |
| Die Code | 54 |
| Indoor/Outdoor | Both |
| Barrel Style | Long Barrel |
| Product Series | 11000 |
| Electrical Connector Type | Compression Connectors |
| For Use With | Copper Conductor Only |
| Connector Base Metal | Copper |
| Termination Style | Crimp |
| Compatible Installation Tool Model Number | 10000 to 11000 |
| Color Code | Purple |
| Contact Finish | Tin |
| Special Features | Color Coded Printing for Easy Connector Identification, Integral Center Cable Stop, Simple Installation Using Readily Available Tools |
| Contact Material | Copper |
| For Wire Type | Solid, Stranded |
| Series | 10000 |
| Country of Origin | Chile |
