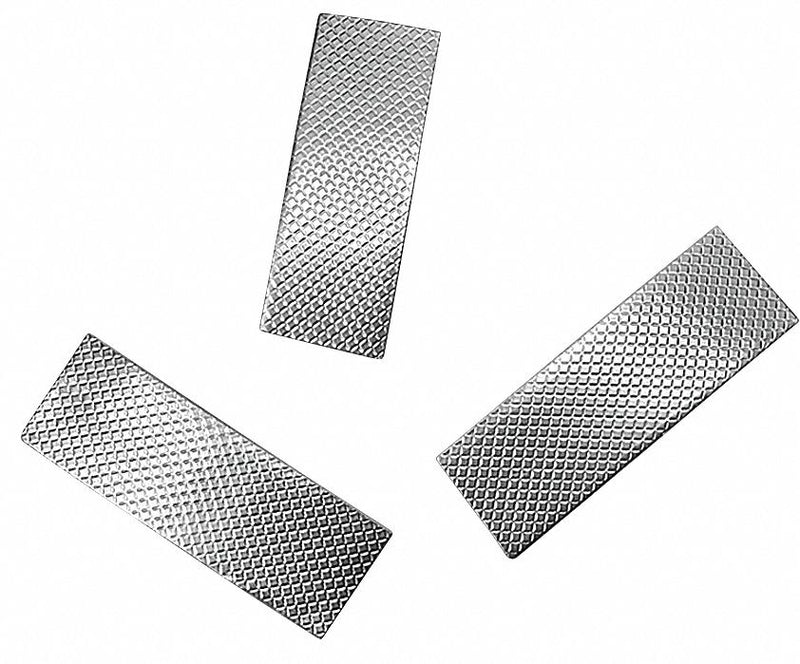

3M 1345 Conductive Electrical Tape Strips, 3/4 in x 4 in, PK100
UPC: 888519083864 | Harmonization / Schedule B : 7410.12.0060
Country of Origin: Taiwan | Shipping Weight: 0.25 lbs
Original price
$194.38
-
Original price
$194.38
Original price
$194.38
$194.38
-
$194.38
Current price
$194.38
Conductive Electrical Tape, Tape Backing Material Copper Foil, 3/4 in, 4 in, Tape Color Silver, Tape Sub-Type Ultra-Conductive Embossed Foil, Tape Adhesive Material Acrylic, 4 mil, 3M(TM), 1345, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 266 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 66 dB, Liner Included Liner Included, Product Form Pre-Cut, Tape Adhesive Format Single-Sided
| Tape Color | Silver |
|---|---|
| Series | 1345 |
| Performance Temp. | -40 Degrees to 130 Degrees C |
| Tape Tensile Strength | 25 lb/in |
| Standards | RoHS 2011/65/EU, UL Listed |
| Material | Embossed Tin-Plated Copper Foil |
| Shape | Rectangle |
| Adhesion Strength | 45 oz./in. |
| Number of Adhesive Sides | 1 |
| Tape Properties | Electrically Conductive, Die-Cuttable, Solderable |
| Liner Included | Liner Included |
| Breaking Strength | 25 lb/in |
| Minimum Tape Performance Temperature | -40 Degrees F |
| Tape Resistance Properties | Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant |
| Adhesive Properties | Non-Conductive |
| Tape Adhesive Material | Acrylic |
| Tape Type | Conducting Electrical Tape |
| Voltage Rating | 600 V |
| Product Form | Pre-Cut |
| Shielding Effectiveness | 66 dB |
| Maximum Tape Performance Temperature | 266 Degrees F |
| Tape Sub-Type | Ultra-Conductive Embossed Foil |
| Adhesion to Steel | 45 oz/in |
| Backing Material Finish | Tin-Plated |
| Pre-Cut Shape | Strip |
| Insulation Resistance | 5.00 x 10^-3 ohm/sq |
| Country of Origin | Taiwan, Province of China |
