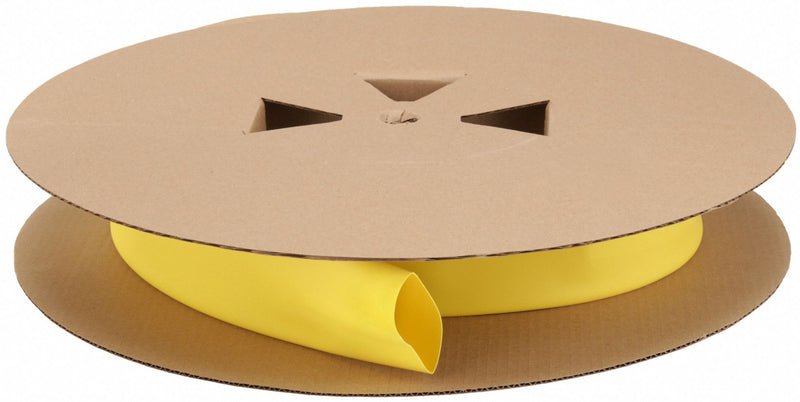

3M FP301-3/64-1000'-YELLOW-SPOOL Heat Shrink Tubing, 0.05 in I.D. Before Shrinking, 0.02 in I.D. After Shrinking, Yellow, 3 PK
UPC: | Harmonization / Schedule B : 3917.32.0050
Country of Origin: United States | Shipping Weight: 8.7 lbs
Original price
$1,909.11
-
Original price
$1,909.11
Original price
$1,909.11
$1,909.11
-
$1,909.11
Current price
$1,909.11
Heat Shrink Tubing, Thin Wall, Material Polyolefin, Flexible, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 23 AWG to 17 AWG, I.D. Before Shrinking 0.05 in, I.D. After Shrinking 0.02 in, Wall Thickness After Shrinking 0.02 in, Length 1,000 ft, Shrink Tubing Properties Acid and Alkali-Resistant, Solvent-Resistant, Color Yellow, Temp. Range -67 Degrees to 275 Degrees F, Package Style Cut to Length, Min. Shrink Temp. 212 Degrees F, Dielectric Strength 900 V
| Shrink Ratio | 2:1 |
|---|---|
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 0.046 in |
| Shrink Tubing I.D. After Shrinking | 0.02 in |
| Material | Polyolefin |
| Color | Yellow |
| Temp. Range | -67° to 275°F |
| Min. Shrink Temp. | 212°F |
| Shrink Tubing Material Type | Flexible |
| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |
| Flame Retardant | Yes |
| Max. Voltage | 600 V |
| Standards | CSA Certified, RoHS 2011/65/EU, UL E39100 |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Shrink Tubing Properties | Acid and Alkali-Resistant, Solvent-Resistant |
| Dielectric Strength | 900 V |
| Package Style | Cut to Length |
| Min. Temp. Rating | -67 Degrees F |
| Max. Temp. Rating | 275 Degrees F |
| I.D. After Shrinking | 0.02 in |
| I.D. Before Shrinking | 0.05 in |
| Shrink Tube Material Type | Flexible |
| Country of Origin | United States |
