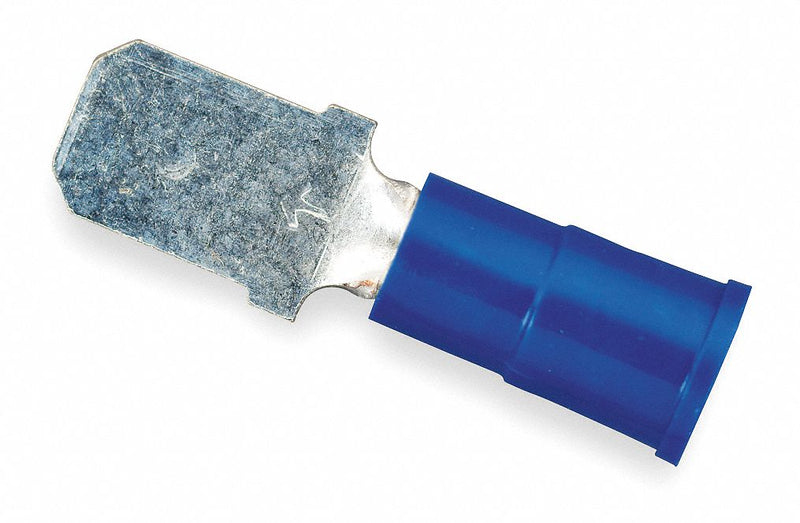

3M MVU14-250DMX Wire Disconnect, Male Tab, Blue, Vinyl, Partial Coverage, 16 AWG – 14 AWG Wire Size

3M MVU14-250DMX Wire Disconnect, Male Tab, Blue, Vinyl, Partial Coverage, 16 AWG – 14 AWG Wire Size

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.3 lbs

$212.24 - $212.24
$212.24
$212.24 - $212.24
$212.24

Male Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed

Tab Size 0.032 in x 0.250 in
Overall Length 0.93 in
Barrel Inside Dia. 0.085 in
Tab Width 0.25 in
Barrel Inside Diameter 0.085 in
Maximum Wire Size 14 AWG
Minimum Wire Size 16 AWG
Tab Thickness 0.032 in
Overall Diameter 0.39 in
Pad Width 0.25 in
Connection Width 0.25 in
Maximum Insulation Outer Diameter 0.17 in
Minimum Conductor Size 16 AWG
Male Tab Width (W') 0.250 in
Diameter (D) 0.39 in
Maximum Conductor Size 14 AWG
Barrel Outside Diameter 0.39 in
Wire Rope Length 0.93 in
Length 0.93 in
MFR # MVU14-250DMX
Zoro # G1256245
UPC # 00051128586761
Country of Origin United States
Insulation Partial
Material Plastic
Insulation Color Blue
Wire Range 16 to 14 AWG
Connection Type Crimp
Insulation Type Vinyl
Seam Butted
Max. Temp. 221 Degrees F
Max. Voltage 600 V
Standards CSA Certified, UL Listed
Connection Material Tin-Plated Copper
Terminal Type Tab
Contact Material Copper
Maximum Voltage 600 V
Minimum Operating Temperature 221 Degrees F
Seam Style Butted
Termination Style Crimp
Insulation Coverage Partial Coverage
Maximum Operating Temperature (Celsius) 105°C
Disconnect Type Male
Fastener Orientation Male
Voltage Application Low Voltage
Solution for Wireless Network Infrastructure Accessories
Terminal Style Standard
RoHS Compliant Yes
Contact Finish Tin
Special Features Allows for Quick and Easy Disconnect of Wires
Disconnect Style Quick Disconnect
Insulation Material Vinyl
Country of Origin USA (subject to change)
