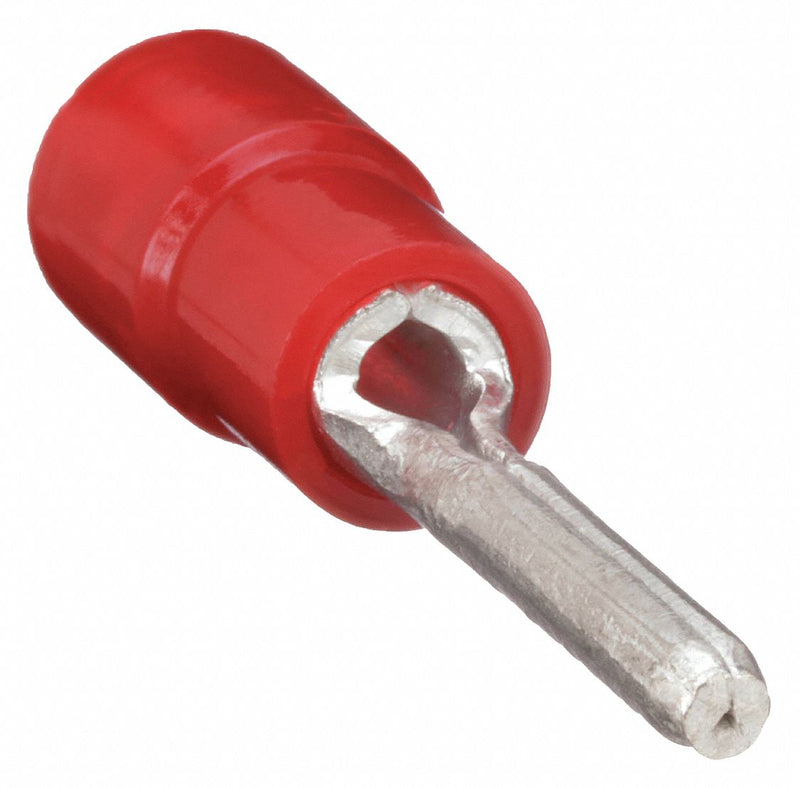

3M MVU18-47PX-A Pin Terminal, Red, Vinyl, 0.075 in Pin Dia
UPC: | Harmonization / Schedule B : 8536.90.4000
Country of Origin: Taiwan | Shipping Weight: 0.19 lbs
Original price
$127.16
-
Original price
$127.16
Original price
$127.16
$127.16
-
$127.16
Current price
$127.16
Pin Terminal, Insulation Color Red, Standards UL Listed/CSA Certified, Connection Type Crimp, Insulation Type Vinyl, Overall Length 0.9 in, Package Quantity 100
| Maximum Wire Size | 18 AWG |
|---|---|
| Minimum Wire Size | 22 AWG |
| Barrel Inside Dia. | 0.075 in |
| Overall Length | 0.9 in |
| Pin Length (In.) | 0.47 |
| Connection Width | 0.47 in |
| Maximum Insulation Outer Diameter | 0.15 in |
| Pin Length | 0.47 in |
| Barrel Inside Diameter | 0.07 in |
| Pin Diameter | 0.075 in |
| Wire Rope Length | 0.9 in |
| Length | 0.9 in |
| MFR # | MVU18-47PX-A |
| Zoro # | G1036296 |
| UPC # | 00051128588710 |
| Country of Origin | Taiwan, Province of China |
| Terminal Shape | Pin |
| Termination Style | Crimp Termination Only |
| Insulation Color | Red |
| Insulation Type | Vinyl |
| Contact Material | Copper |
| Maximum Voltage | 600 V |
| Maximum Operating Temperature | 167 Degrees F |
| Standards | UL Listed/CSA Certified |
| Max. Temp. | 167 Degrees F |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Seam | Butted |
| Wire Range | 22 to 18 AWG |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Terminal Type | Pin |
| Solution for | Wireless Network Infrastructure Accessories |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Vinyl |
| Seam Style | Butted |
| Contact Finish | Tin |
| Special Features | Corrosion Resistant |
| Barrel Style | Butted |
| Country of Origin | Taiwan (subject to change) |
