Advance 71A5390-001D HID Ballast Kit 100 W Max. Bulb Watts, ANSI Code M140/M90, Pulse, 120/208/240/277V AC

Advance, Magnetic, HID Ballast Kit, Ballast Start Type Pulse, ANSI Code M140, M90, Metal Halide Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 100 W, Input Voltage 120/208/240/277V AC, Input Watts 92 W, -20 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 60 Hz

Ballast Max. Lamp Watts	100
Ballast Voltage	120/208/240/277
Ballast Start Type	Pulse
For Use With	Metal Halide HID Bulbs
ANSI Code	M140, M90
Ballast Item	HID Ballast Kit
Input Watts	92 W

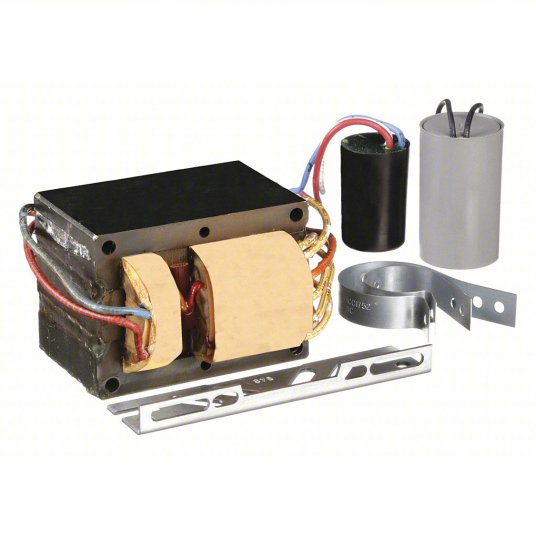

Includes	Capacitor, Coil, Core, Hardware, Ignitor, Mounting Bracket
Operating Amps @ 120V	1.2 A
Ballast Family	HID Magnetic
Number of Lamps	1
Operating Amps @ 277V	0.5 A
Operating Amps @ 240V	0.58 A
Insulation Class	H
Footnotes	6
Operating Amps @ 208V	0.66 A
Ballast Type	Magnetic

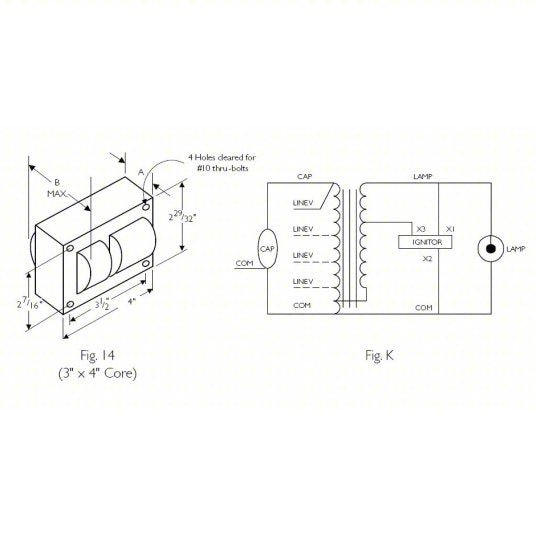

Figure Number	H1
Ballast Lamp Watts	100
Min. Starting Temp.	-20 Degrees F
Hz	60
Operating Amps @ 480V	2.4 A
Thermal Protection	No
Fixture Ballast Type	Core and Coil
Ballast Bulb Type	Metal Halide
Max. Bulb Watts	100 W
Number of Bulbs Supported	1
Starter Required	No
Frequency	60 Hz
Input Voltage	120/208/240/277V AC
Brand and Series	Advance
Ballast Factor	1
Standards	CSA Certificate, RoHS Compliant, ULR
Housing Material	Steel
Min. Bulb Watts	100 W
