Advance 71A5750-001D HID Ballast Kit 250 W Max. Bulb Watts, ANSI Code M58, Probe, 120/208/240/277/480V AC

Advance, Magnetic, HID Ballast Kit, Ballast Start Type Probe, ANSI Code M58, Metal Halide Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 250 W, Input Voltage 120/208/240/277/480V AC, Input Watts 290 W, -20 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 60 Hz

Ballast Lamp Type	Metal Halide
Ballast Max. Lamp Watts	250
Ballast Voltage	120/208/240/277/480
Ballast Start Type	Probe
For Use With	Metal Halide HID Bulbs
ANSI Code	M58
Ballast Item	HID Ballast Kit
Input Watts	290 W
Hz	60
Min. Starting Temp.	-20 Degrees F
Number of Lamps	1
Operating Amps @ 277V	1.1 A
Ballast Lamp Watts	250
Ballast Family	HID Magnetic
Footnotes	6
Operating Amps @ 240V	1.4 A
Insulation Class	H
Operating Amps @ 480V	0.65 A
Ballast Type	Magnetic

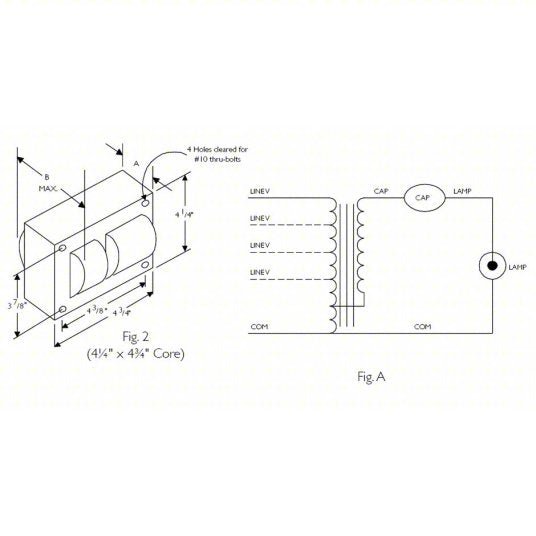

Figure Number	A26
Operating Amps @ 208V	1.5 A

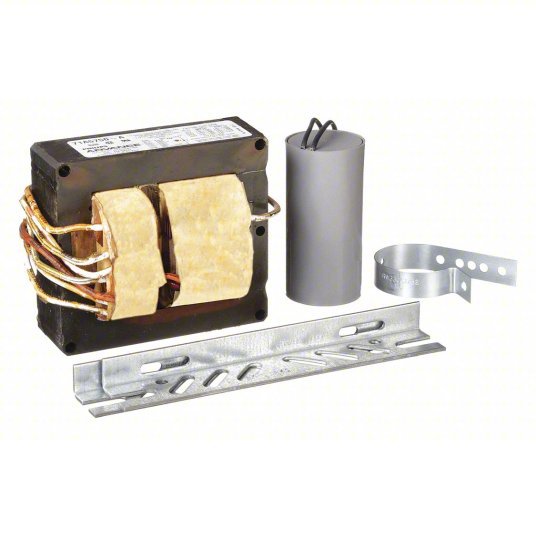

Includes	Capacitor, Coil, Core, Hardware, Mounting Bracket
Operating Amps @ 120V	2.6 A
Thermal Protection	No
Fixture Ballast Type	Core and Coil
Ballast Bulb Type	Metal Halide
Frequency	60 Hz
Ballast Factor	1
Max. Bulb Watts	250 W
Input Voltage	120/208/240/277/480V AC
Starter Required	No
Standards	CSA Certificate, RoHS Compliant, ULR
Min. Bulb Watts	250 W
Number of Bulbs Supported	1
Housing Material	Steel
