Advance 71A6051-001D HID Ballast Kit 400 W Max. Bulb Watts, ANSI Code M59, Probe, 120/208/240/277/480V AC

Advance, Magnetic, HID Ballast Kit, Ballast Start Type Probe, ANSI Code M59, Metal Halide Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 400 W, Input Voltage 120/208/240/277/480V AC, Input Watts 455 W, -20 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 60 Hz

Ballast Max. Lamp Watts	400
Ballast Voltage	120/208/240/277/480
Ballast Start Type	Probe
For Use With	Metal Halide HID Bulbs
ANSI Code	M59
Ballast Item	HID Ballast Kit
Input Watts	455 W
Min. Starting Temp.	-20 Degrees F
Ballast Family	HID Magnetic
Operating Amps @ 480V	0.99 A
Operating Amps @ 240V	2.2 A

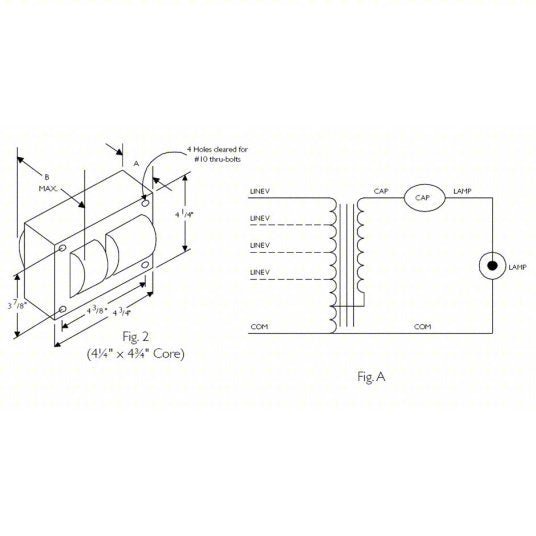

Figure Number	A26
Ballast Type	Magnetic

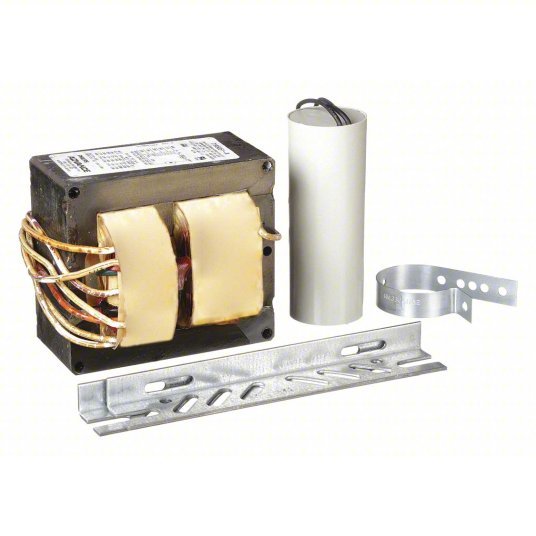

Includes	Capacitor, Coil, Core, Hardware, Mounting Bracket
Operating Amps @ 277V	1.72 A
Operating Amps @ 208V	2.29 A
Footnotes	6
Hz	60
Number of Lamps	1
Insulation Class	H
Operating Amps @ 120V	4.13 A
Ballast Lamp Watts	400
Thermal Protection	No
Fixture Ballast Type	Core and Coil
Ballast Bulb Type	Metal Halide
Number of Bulbs Supported	1
Frequency	60 Hz
Min. Bulb Watts	400 W
Starter Required	No
Standards	CSA Certificate, RoHS Compliant, ULR
Housing Material	Steel
Ballast Factor	1
Input Voltage	120/208/240/277/480V AC
Brand and Series	Advance
Max. Bulb Watts	400 W
