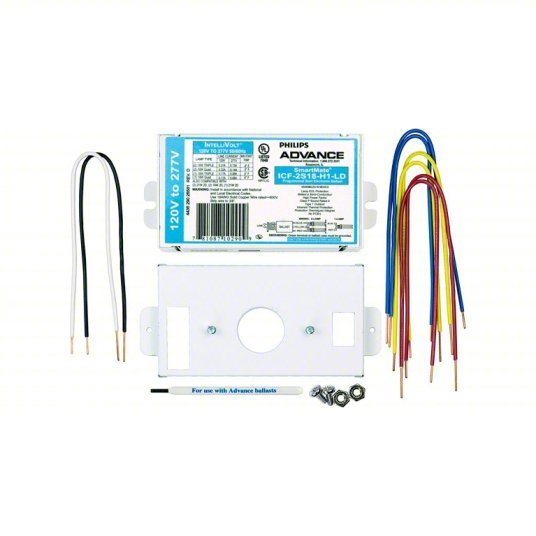

Advance ICF-2S18-H1-LD-K CFL Ballast 120 to 277V AC, 1/2 Lamps Supported, 21 W Bulb Watt, 4 1/4 in Overall Lg
Original price
$46.07
-
Original price
$46.07
Original price
$46.07
$46.07
-
$46.07
Current price
$46.07
SmartMate(R), Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 21 W, Ballast Bulb Type PL-Q, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. 0 Degrees F
| Ballast Type | Electronic |
| Ballast Lamp Type | Compact Fluorescent |
| Ballast Max. Lamp Watts | 21 |
| Ballast Voltage | 120-277 |
| Ballast Max. Number of Lamps | 2 |
| Ballast Start Type | Rapid |
| Ballast Dimming | No |
| Ballast Dimming Type | No Dimming |
| Input Watts | 35W |
| Ballast Family | SmartMate(R) |
| Ballast Lamp Watts | 21 |
| Light Output | Normal |
| Base Type | 4 Pin |
| Min. Starting Temp. | 0 Degrees F |
| Special Features | Dual Connector |
| Number of F18BX Lamps | 1 or 2 |
| Item | CFL Ballast |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Wiring Type | Series |
| Power Factor | 0.98 |
| Total Harmonic Distortion | 10 % |
| Ballast Factor | 0.95 |
| Fixture Ballast Type | Electronic |
| Ballast Bulb Type | PL-Q |
| Frequency | 50/60 Hz |
| Includes | Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool |
| Max. Operating Temp. | 158 Degrees F |
| Bulb Base Type | 4-Pin (G24q), (PL-C) |
| Operating Amps @ 120V | 0.13 A, 0.3 A |
| Dimming Range | No Dimming |
| Dimming Method | No Dimming |
| Number of Bulbs Supported | 1, 2 |
| Standards | CSA Certificate, RoHS Compliant, UL Certificate |
| Max. Bulb Watts | 21 W |
| Dimming Type | No Dimming |
| Brand and Series | SmartMate(R) |
| Starter Required | No |
| Thermal Protection | No |
| Input Voltage | 120 to 277V AC |
| Dimming | No |
| Voltage | 120/277 |
| Lamp Types Supported | (1 or 2) CFQ18, (1 or 2) CFTR18, (1 or 2) F18DBX, (1 or 2) F18TBX, (1 or 2) CFT18 |
