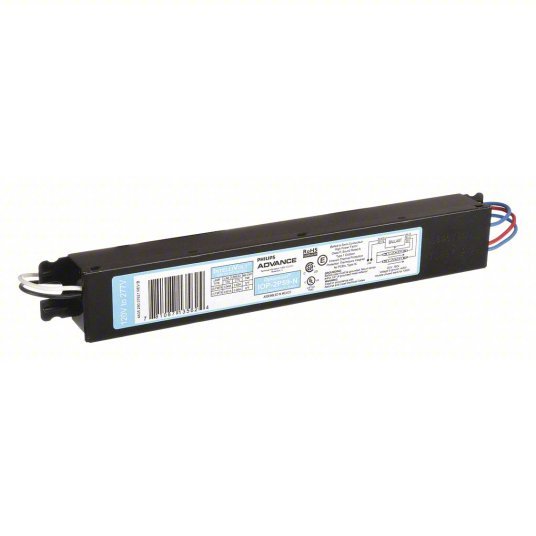

Advance IOP-2P59-N Fluorescent Ballast T8, 120 to 277V AC
Original price
$38.34
-
Original price
$38.34
Original price
$38.34
$38.34
-
$38.34
Current price
$38.34
SmartMate(R), Electronic, CFL Ballast, Ballast Start Type Programmed, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 16 W, Compact Fluorescent Ballast Bulb Type, 4-Pin (G24q), (PL-C) Bulb Base Type, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, 0 Degrees F Min. Starting Temp., 158 Degrees F Max. Operating Temp., Thermal Protection No
| Ballast Lamp Type | Compact Fluorescent |
| Ballast Max. Lamp Watts | 16 |
| Ballast Voltage | 120-277 |
| Ballast Max. Number of Lamps | 2 |
| Ballast Start Type | Programmed |
| Ballast Dimming | No |
| Ballast Dimming Type | No Dimming |
| Input Watts | 29W |
| Number of F13BX Lamps | 1 or 2 |
| Special Features | Dual Connector |
| Ballast Lamp Watts | 16 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Min. Starting Temp. | 0 Degrees F |
| Ballast Family | SmartMate(R) |
| Light Output | Normal |
| Base Type | 4 Pin |
| Item | CFL Ballast |
| Power Factor | 0.98 |
| Wiring Type | Series |
| Ballast Factor | 1 |
| Total Harmonic Distortion | Less Than 10% |
| Number of F13DBX Lamps | 1 or 2 |
| Fixture Ballast Type | Electronic |
| Ballast Bulb Type | Compact Fluorescent |
| Standards | CSA Certificate, RoHS Compliant, UL Certificate |
| Includes | Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool |
| Dimming Type | No Dimming |
| Bulb Base Type | 4-Pin (G24q), (PL-C) |
| Thermal Protection | No |
| Max. Operating Temp. | 158 Degrees F |
| Number of Bulbs Supported | 1, 2 |
| Brand and Series | SmartMate(R) |
| Dimming Method | No Dimming |
| Input Voltage | 120 to 277V AC |
| Frequency | 50/60Hz |
| Operating Amps @ 120V | 0.11 A, 0.25 A |
| Dimming Range | No Dimming |
| Starter Required | No |
| Max. Bulb Watts | 16 W |
| Dimming | No |
