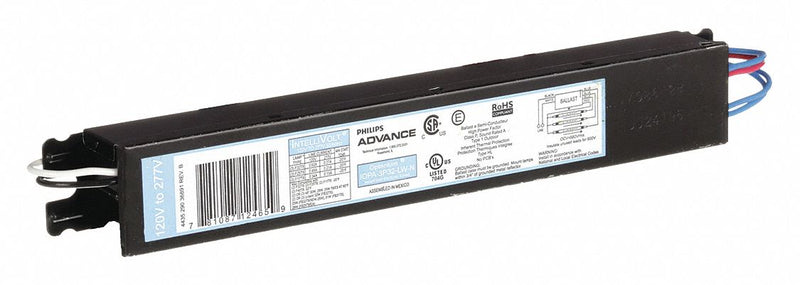

Advance IOPA-3P32-LW-N Fluorescent Ballast, Electronic, T8, 120 to 277V AC, 2 or 3 Lamps, 17-40W Bulb, Optanium, Instant Start
Original price
$36.12
-
Original price
$36.12
Original price
$36.12
$36.12
-
$36.12
Current price
$36.12
Optanium(R), Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120 to 277V AC, Number of Bulbs Supported 2, 3, Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, 40 W, Ballast Bulb Type T8, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -20 Degrees F
| Length | 9 1/2 in |
| Width | 1 3/8 in |
| Height | 1 in |
| Ballast Lamp Type | T8 |
| Ballast Max. Number of Lamps | 3 |
| Input Voltage | 120 to 277V AC |
| Ballast Voltage | 120-277 |
| Ballast Start Type | Instant |
| Ballast Dimming | No |
| Ballast Item | Electronic Ballast |
| Ballast Max. Lamp Watts | 32 |
| Ballast Type | Electronic |
| Ballast Dimming Type | No Dimming |
| Input Watts | 71 to 73 W |
| Ballast Family | Optanium(R) |
| Ballast Factor | 0.77 |
| Power Factor | 0.98 |
| Number of F25T8 Lamps | 2 or 3 |
| Amps AC | 0.27 to 0.62 A |
| Number of F32T8 Lamps | 2 or 3 |
| Number of F30T8 Lamps | 2 or 3 |
| Number of F32T8(30W) Lamps | 2 or 3 |
| Total Harmonic Distortion | 10 % |
| Number of F32T8U Lamps | 2 or 3 |
| Ballast Lamp Watts | 32 |
| Light Output | Low |
| Number of F40T8 Lamps | 2 |
| Min. Starting Temp. | -20 Degrees F |
| Number of F17T8 Lamps | 2 or 3 |
| Wiring Type | Parallel |
| Number of F28T8 Lamps | 2 or 3 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Number of F32T8(28W) Lamps | 2 or 3 |
| Voltage | 120/277 |
| Standards | CEC Listed, CEE Rated, CSA, NEMA, RoHS Compliant, UL Listed |
| Fixture Ballast Type | Electronic |
| Ballast Bulb Type | T8 |
| Dimming Type | No Dimming |
| Frequency | 50/60 Hz |
| Max. Bulb Watts | 17 W, 25 W, 28 W, 32 W, 40 W |
| Sockets Included | No |
| Dimming Method | No Dimming |
| Operating Amps @ 120V | 0.62 A |
| Number of Bulbs Supported | 2, 3 |
| Thermal Protection | Class P |
| Number of F32T8(26W) Lamps | 2 or 3 |
| Dimming Range | No Dimming |
| Brand and Series | Optanium(R) |
| Starter Required | No |
| Dimming | No |
| Lamp Types Supported | (2 or 3) F17T8, (2 or 3) F25T8, (2 or 3) F28T8, (2 or 3) F32T8, (2) F40T8 |
| Country of Origin | Mexico |
