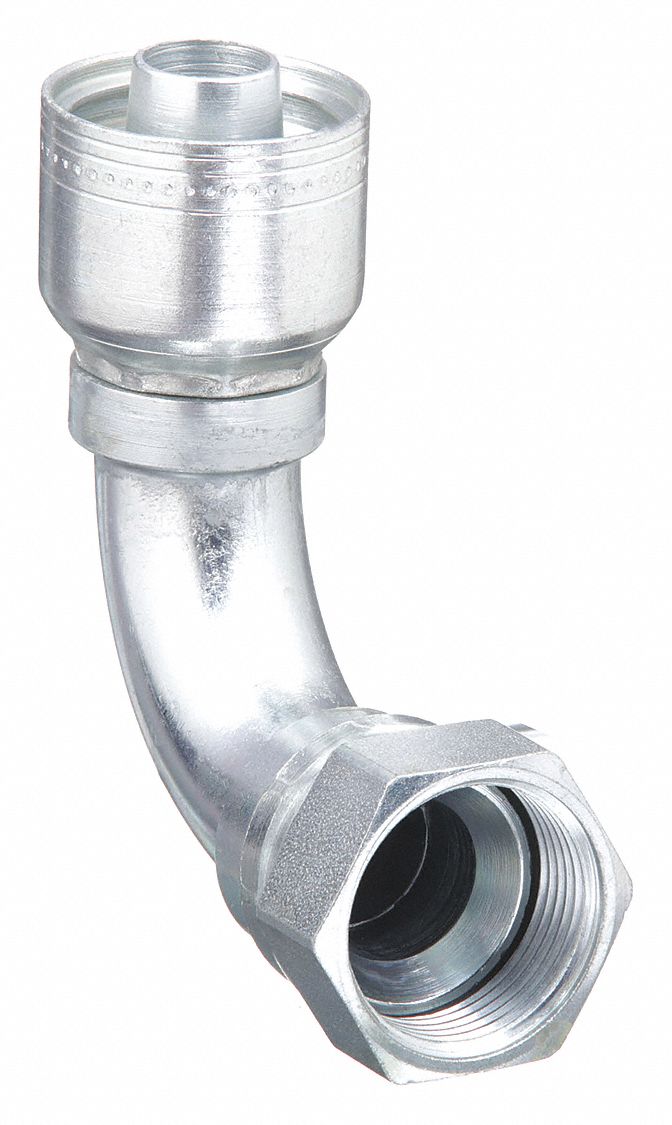

Aeroquip 1AA6FJB4 Hydraulic Crimp Fitting, 9/16 in x 1/4 in, Female Genderless, Female JIC Threaded x Crimp
UPC: | Harmonization / Schedule B : 7307.92.9000
Country of Origin: South Korea | Shipping Weight: 0.12 lbs
Original price
$36.68
-
Original price
$36.68
Original price
$36.68
$36.68
-
$36.68
Current price
$36.68
Hydraulic Crimp Fitting, For Hose Dash Size -4, For Use With Hose Series 2661(-12 through -32); EC110; EC115; EC118; EC210; EC215; FC310; FC510; FC579; FC611; FC619 (-12 through -32); FC639/FC839B; FC693; FC735; FC849/FC849B; GH120; GH194; GH195; GH663; GH681-6; GH781; GH793, For Hose I.D. 1/4 in, Thread Size 9/16 In.-18, Fitting Shape 90 Degrees Elbow, Swivel, Vacuum Rating Not Rated, Thread Type JIC, Hose Fitting A Gender Female, Hose Fitting B Gender Genderless, Hose Fitting A Size 9/16 in
| Fitting Size | 9/16 in x 1/4 in |
|---|---|
| Length (In.) | 2.00 |
| Hydraulic Fitting Thread Size | 9/16"-18 |
| Hose Dash Size | 4 |
| For Hose Dash Size | -4 |
| Hose Fitting B Size | 1/4 in |
| Thread Size | 9/16"-18 |
| Hose Fitting A Size | 9/16 in |
| MFR # | 1AA6FJB4 |
| Zoro # | G1958661 |
| UPC # | - |
| Country of Origin | Korea, Republic of |
| Fitting Connection Type | JIC x Crimp |
| Fitting Shape | 90 Degrees Elbow |
| For Hose I.D. | 1/4 in |
| Fitting Material | Steel x Steel |
| For Use With Hose Series | 2661(-12 to -32), EC110, EC115, EC118, EC210, EC215, FC310, FC510, FC579, FC611, FC619 (-12 to -32), FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793 |
| Standards | GH793, SAE 100R1, SAE 100R2 |
| Finish | ROHS Trivalent Chromium Zinc |
| Hydraulic Fitting Connection Type | Crimpable |
| Hydraulic Fitting Thread Type | Female JIC Swivel |
| Hydraulic Hose I.D. | 1/4 in |
| Thread Angle (Deg.) | 37 |
| Hose Fitting B Gender | Genderless |
| Hose Fitting A Gender | Female |
| Fitting Movement | Swivel |
| Material Grade | 12L14, 12L15 |
| Thread Type | JIC |
| Hose Fitting A Connection Type | Threaded |
| Hose Fitting B Connection Type | Crimp |
| Reusable | No |
| Vacuum Rating | Not Rated |
| Material | Carbon Steel |
| Country of Origin | South Korea (subject to change) |
