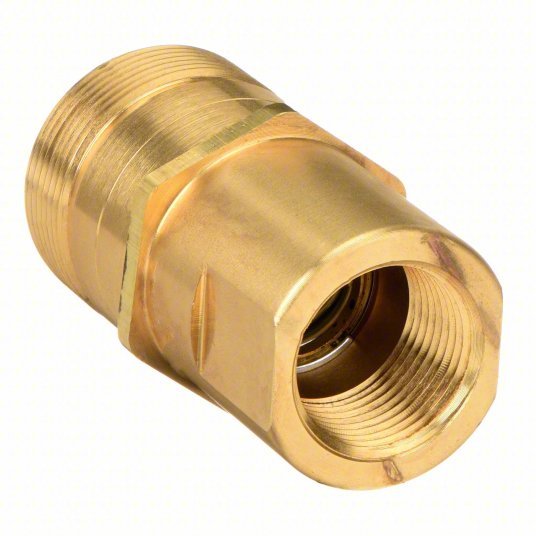

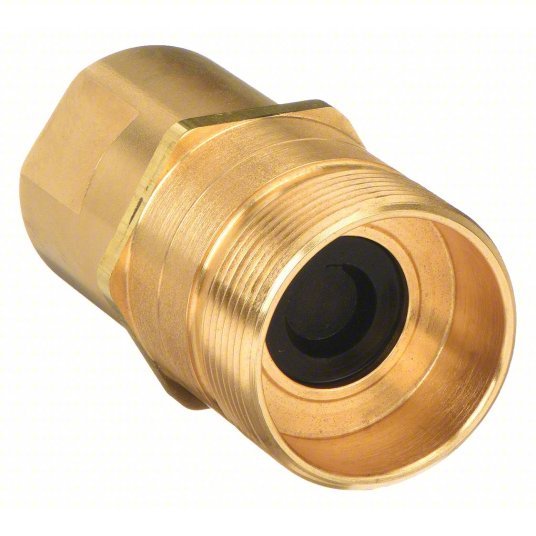

Aeroquip 5100-S2-16B Hydraulic Quick Connect Hose Coupling 1 in Coupling Size, Brass, 151 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Socket, 5100 Series, Brass, Coupling Size 1 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 151 lpm

Coupler Interchange Type	5100
Connection Type	NPT
Coupler Flow Rate	3.0 gpm
Max. Pressure	3000 psi
Coupler Body Material	Brass
Sleeve Material	Steel
Coupler Finish	Plain
Series	5100
Body Material	Brass
Coupling Locking Type	Thread-to-Connect
Shut Off	double
Seal Material	Nitrile
For Use With	Truck Wet Lines
Seal Type	Captive Valve
Parker Interchange	6105-16
Operating Temp. Range	-40 Degrees to 250 Degrees F
Valve Design	Tubular
Locking Mechanism	Screw Together
Hansen Interchange	96-P36
Coupler Connection Type	FNPT
Valve Type	Tubular
Pull Ring Material	PTFE
Safeway Interchange	S511-8; S511W-8
Weatherhead Interchange	5100-S2-16B
Includes Bearing	No
Maximum Vacuum	28 in Hg
Snap-Tite Interchange	B78N-16-16-F; B78N16-16F
Finish/Coating	Trivalent Chromium Zinc
Max. Working Pressure @ 70 F	3,000 psi
Max. Flow Rate	151 lpm
Includes Shut Off	Yes
Fitting Type	FNPT
Coupling Component	Socket
Hose Fitting Gender	Female
Includes Valve	Yes
