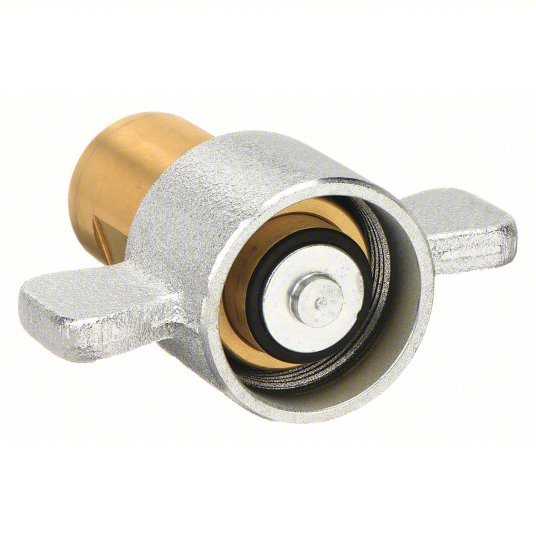

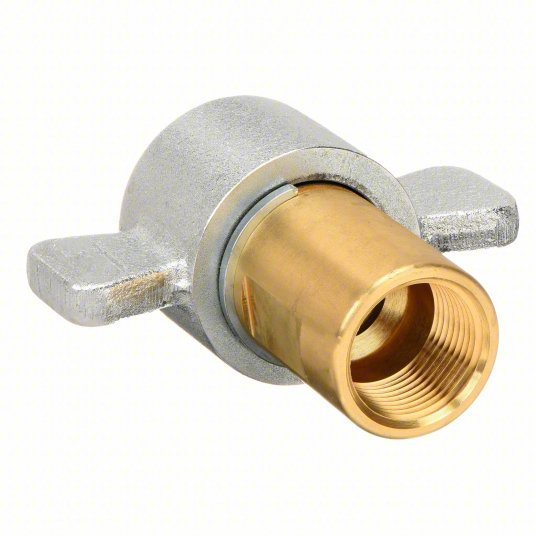

Aeroquip 5100-S5-16B Hydraulic Quick Connect Hose Coupling 1 in Coupling Size, Brass, 151 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Socket, 5100 Series, Brass, Coupling Size 1 in, Female, Max. Working Pressure @ 70 F 3,000 psi, Max. Flow Rate 151 lpm

Quick Coupler Type	Hydraulic Coupler Body
Coupler Interchange Type	5100
Connection Type	NPT
Coupler Flow Rate	40.0 gpm
Max. Pressure	3000 psi
Coupler Body Material	Brass
Sleeve Material	Steel
Coupler Finish	Trivalent Chromium Zinc
Series	5100
Body Material	Brass
Coupling Locking Type	Thread-to-Connect
Operating Temp. Range	-40 Degrees to 250 Degrees F
Seal Material	Nitrile
Seal Type	Captive Valve
Valve Design	Tubular
Locking Mechanism	Screw Together
For Use With	Truck Wet Lines
Shut Off	double
Coupler Connection Type	FNPT
Parker Interchange	6125-16
Hansen Interchange	96-S36
Hose Fitting Gender	Female
Includes Valve	Yes
Pull Ring Material	PTFE
Safeway Interchange	S515W-8
Max. Flow Rate	151 lpm
Fitting Type	FNPT
Finish/Coating	Trivalent Chromium Zinc
Maximum Vacuum	28 in Hg
Weatherhead Interchange	5100-S5-16B
Coupling Component	Socket
Snap-Tite Interchange	B78C-16-16-F; B78C16-16F+H61
Includes Bearing	No
Includes Shut Off	Yes
Valve Type	Tubular
Max. Working Pressure @ 70 F	3,000 psi
