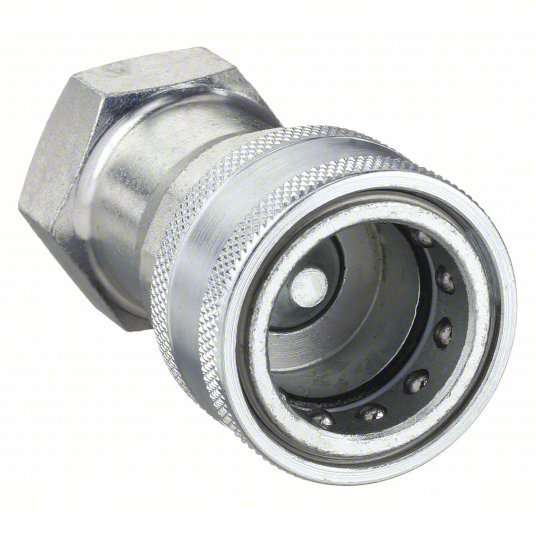

Aeroquip 5601-12-12S Hydraulic Quick Connect Hose Coupling 3/4 in Coupling Size, Steel, 106 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Socket, 5600 Series, Steel, Coupling Size 3/4 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 106 lpm

Quick Coupler Type	Hydraulic Coupler Body
Coupler Interchange Type	5600 A
Connection Type	NPT
Coupler Flow Rate	28.0 gpm
Max. Pressure	4000 psi
Coupler Body Material	Steel
Sleeve Material	Steel
Coupler Finish	Trivalent Chromium Zinc
Series	5600
Body Material	Steel
Coupling Locking Type	Sleeve
Shut Off	double
Locking Mechanism	Ball
Operating Temp. Range	-40 Degrees to 250 Degrees F
Seal Type	Captive Valve
Seal Material	Nitrile
Parker Interchange	6601-12-12
Hansen Interchange	6-I-31; HA-15241-00
Valve Design	Poppet
For Use With	All Hydraulic Applications
Coupler Connection Type	FNPT
Standards	ISO 7241-1 Series A
Includes Valve	Yes
Safeway Interchange	S565-6
Includes Bearing	Yes
Pull Ring Material	PTFE
Maximum Vacuum	28 in Hg
Snap-Tite Interchange	61C-12-12; 61C12-12F
Max. Flow Rate	106 lpm
Includes Shut Off	Yes
Fitting Type	FNPT
Finish/Coating	Trivalent Chromium Zinc
Coupling Component	Socket
Max. Working Pressure @ 70 F	4,000 psi
Weatherhead Interchange	5601-12-12S
Valve Type	Poppet
Hose Fitting Gender	Female
