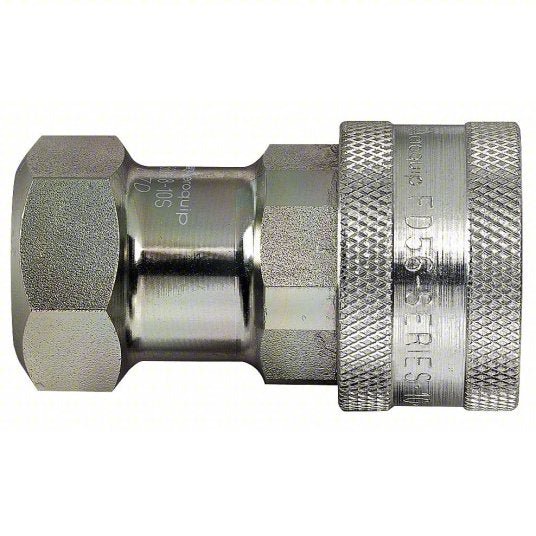

Aeroquip 5601-16-16S Hydraulic Quick Connect Hose Coupling 1 in Coupling Size, Steel, 189 lpm Max. Flow Rate
Original price
$150.19
-
Original price
$150.19
Original price
$150.19
$150.19
-
$150.19
Current price
$150.19
| Quick Coupler Type | Hydraulic Coupler Body |
| Coupler Interchange Type | 5600 A |
| Connection Type | NPT |
| Coupler Flow Rate | 50.0 gpm |
| Max. Pressure | 4000 psi |
| Coupler Body Material | Steel |
| Sleeve Material | Steel |
| Coupler Finish | Trivalent Chromium Zinc |
| Series | 5600 |
| Body Material | Steel |
| Coupling Locking Type | Sleeve |
| Hansen Interchange | 8-I-36; HA-15251-00 |
| Shut Off | double |
| For Use With | All Hydraulic Applications |
| Valve Design | Poppet |
| Coupler Connection Type | FNPT |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Seal Material | Nitrile |
| Locking Mechanism | Ball |
| Standards | ISO 7241-1 Series A |
| Parker Interchange | 6601-16-16 |
| Seal Type | Captive Valve |
| Pull Ring Material | PTFE |
| Max. Flow Rate | 189 lpm |
| Fitting Type | FNPT |
| Snap-Tite Interchange | 61C-16-16; 61C16-16F |
| Valve Type | Poppet |
| Hose Fitting Gender | Female |
| Includes Shut Off | Yes |
| Max. Working Pressure @ 70 F | 4,000 psi |
| Coupling Component | Socket |
| Safeway Interchange | S565-8 |
| Finish/Coating | Trivalent Chromium Zinc |
| Weatherhead Interchange | 5601-16-16S |
| Includes Valve | Yes |
| Maximum Vacuum | 28 in Hg |
| Includes Bearing | Yes |
