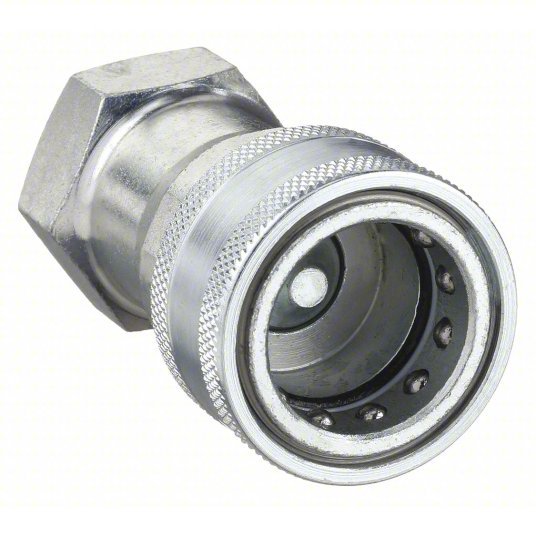

Aeroquip 5601-6-6S Hydraulic Quick Connect Hose Coupling 3/8 in Coupling Size, Steel, 23 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Socket, 5600 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 23 lpm

Quick Coupler Type	Hydraulic Coupler Body
Coupler Interchange Type	5600 A
Connection Type	NPT
Coupler Flow Rate	6.0 gpm
Max. Pressure	4000 psi
Coupler Body Material	Steel
Sleeve Material	Steel
Coupler Finish	Trivalent Chromium Zinc
Series	5600
Body Material	Steel
Coupling Locking Type	Sleeve
Coupler Connection Type	FNPT
Parker Interchange	6601-6-6
Shut Off	double
Operating Temp. Range	-40 Degrees to 250 Degrees F
Locking Mechanism	Ball
Seal Material	Nitrile
Hansen Interchange	3-I-21; HA-15221-00
Seal Type	Captive Valve
For Use With	All Hydraulic Applications
Standards	ISO 7241-1 Series A
Valve Design	Poppet
Weatherhead Interchange	5601-6-6S
Finish/Coating	Trivalent Chromium Zinc
Includes Shut Off	Yes
Safeway Interchange	S565-3
Max. Working Pressure @ 70 F	4,000 psi
Valve Type	Poppet
Max. Flow Rate	23 lpm
Hose Fitting Gender	Female
Snap-Tite Interchange	61C-6-6; 61C6-6F
Maximum Vacuum	28 in Hg
Fitting Type	FNPT
Pull Ring Material	PTFE
Coupling Component	Socket
Includes Bearing	Yes
Includes Valve	Yes
