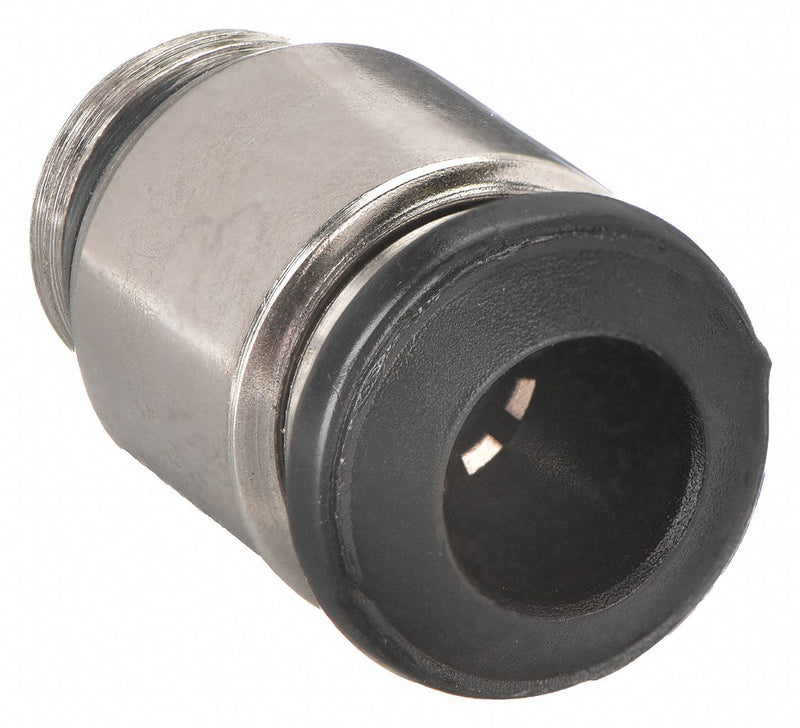

AIGNEP USA 50010N-8-1/4-PK5 Push-Fit Adapter Fitting, 8 mm OD x 1/4 in Pipe Size, Brass, 7/8 in Overall Lg, 5 PK
Original price
$35.68
-
Original price
$35.68
Original price
$35.68
$35.68
-
$35.68
Current price
$35.68
Push-Fit Adapter Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Universal, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 8 mm, Fitting Material Brass, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 160 Degrees F, Overall Length 7/8 in, Specific Fitting Shape Straight Adapter.
| Tube Size | 8mm |
| Pipe Size | 1/4 in |
| Overall Length | 7/8 in |
| Fitting Side A Tube Outer Diameter | 8 mm |
| Fitting Side B Pipe Size | 1/4 in |
| Fitting Side 1 Tube Outer Diameter | 8 mm |
| Fitting Side 2 Pipe Size | 1/4 in |
| Material | Metal |
| Max. Pressure | 290 psi |
| Connection Type | Push-to-Connect x Universal |
| Application | Vacuum |
| Standards | ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified |
| Temp. Range | 0 Degrees to 160 Degrees F |
| Specific Pipe Fitting Shape | Adapter |
| Fitting Shape | Straight |
| Gasket Material | Rubber |
| Pipe Fitting Connection Type | MNPT x Tube |
| Basic Pipe Fitting Material | Metal |
| Tube Fitting Material | Brass |
| Basic Pipe Fitting Shape | Adapter |
| Special Features | Universal Thread System Compatible with Inch and Metric Threads |
| Body Material | Nickel Plated Brass |
| Fittings Sub-Category | Adapters |
| Color | Silver |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Side B Connection Type | Universal |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Material | Brass |
| Includes Pre-Applied Thread Sealant | Pre-Applied Thread Sealant Included |
| Release Ring Material | Rubber |
| Thread Sealant Type | NBR 70 |
| Maximum Operating Temperature | 160 Degrees F |
| Maximum Operating Pressure | 290 psi |
| Compatible Tube Material | FEP, Polyamide 11, Polyamide 12, Polyamide 6, Polyethylene, Polyurethane, PTFE |
| Finish/Coating | Nickel Plated |
| System of Measurement | Imperial/Metric |
| Operating Pressure - Maximum | 290 psi |
| Fitting Side 1 Connection Type | Push-to-Connect |
| Finish | Nickel-Plated |
| Operating Temperature - Minimum | 0 Degrees F |
| Connector Type | Adapter |
| For Media Type | Air |
| Fitting Side 2 Connection Type | Universal Thread |
| Operating Temperature - Maximum | 160 Degrees F |
| Country of Origin | United States |
