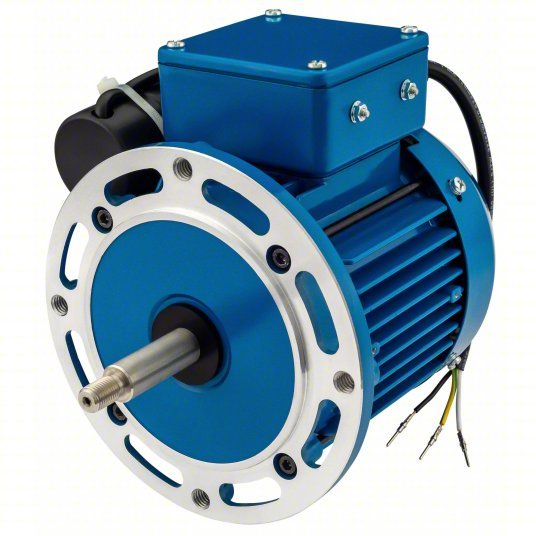

American Stainless M1.0T11G-JH1 Motor, 1 HP, 3,420 rpm, 56J, 115/230V
Original price
$728.89
-
Original price
$728.89
Original price
$728.89
$728.89
-
$728.89
Current price
$728.89
| Voltage | 230V AC |
| Weight | 17 lb |
| Motor Frame Material | Cast Aluminum |
| Motor Application | Pump |
| Conduit Box Position | F3 |
| Motor Sub Application | Vertical Pump |
| Standards | CSA (C22.2 No 77), CSA (C22.2 No. 100), UL (1004-1), UL (1004-3) |
| For Pump Number | FDP1AH, FDP2AH, FDP3AH |
| No. of Speeds | 1 |
| Full Load Amps | 9.6/4.8 A |
| Part Winding Start Capable | No |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Hz | 60 |
| Ins. Class | F |
| Shaft Material | 303 Stainless Steel |
| Max. SF Amps | 9.3/4.8 A |
| Usable @ 200V | No |
| Finish | Powder Coated |
| Overload Relay Required | No |
| Motor Mounting Type | Face |
| Conduit Box Location | Exterior |
| RPM Range | 3,001-3,600 |
| Motor Shaft Rotation | CCW |
| Motor Shaft Design | Threaded |
| Bearing Protection | Water Slingers |
| HP | 1 |
| Motor Thermal Protection | Auto |
| Frame | 56J |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1.2 |
| Number of Wires | 3 |
| Nominal Efficiency | 74.1 % |
| Motor Design | Permanent Split Capacitor |
| Duty Cycle | Continuous |
| Inverter Rated | No |
| Nameplate RPM | 3,420 |
| Motor Mounting Position | Horizontal; Vertical Shaft Down |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Phase | Single |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC |
| Usable @ 208V | No |
