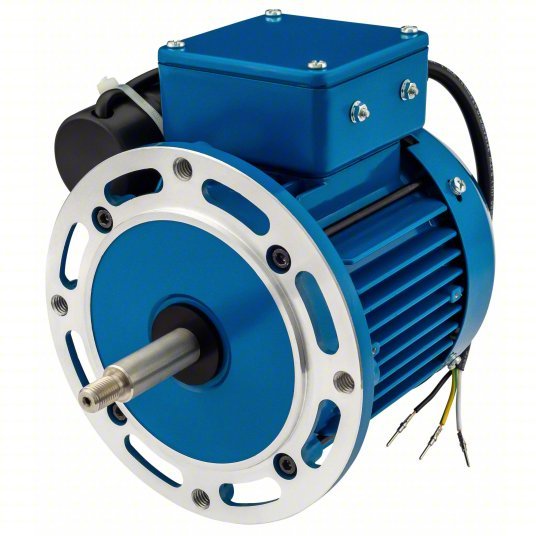

American Stainless M1.0T11G Motor, 1 HP, 3,420 rpm, 56J, 115/230V

American Stainless M1.0T11G Motor, 1 HP, 3,420 rpm, 56J, 115/230V

$729.49 - $729.49
$729.49
$729.49 - $729.49
$729.49
Pump Motor, Bearing Protection Water Slingers, Body Dia. 5.5 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F3, Duty Cycle Continuous, Finish Powder Coated, For Pump Number FDP1AL, FDP1AH, FDP2AH, FDP3AH, FDP5AL, Frame 56J, Hz 60, Full Load Amps 9.6/4.8 A, Height 7 3/4 in, HP 1, Ins. Class F, Inverter Rated No, Length Less Shaft 6 1/2 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 9.3/4.8 A, Motor Application Pump
Voltage 115/230V AC
Motor Application Pump
Max. Ambient Temp. 40 Degrees C
Phase Single
HP 1
For Pump Number FDP1AL, FDP1AH, FDP2AH, FDP3AH, FDP5AL
Conduit Box Position F3
Frame 56J
Motor Shaft Design Threaded
Motor Service Factor 1.2
Overload Relay Required No
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Ins. Class F
Standards CSA (C22.2 No 77), CSA (C22.2 No. 100), UL (1004-1), UL (1004-3)
Nameplate RPM 3,420
Motor Enclosure Design Totally Enclosed Fan-Cooled
Full Load Amps 9.6/4.8 A
Motor Frame Material Cast Aluminum
Conduit Box Location Exterior
Motor Mounting Position Horizontal; Vertical Shaft Down
Motor Thermal Protection Auto
Inverter Rated No
Motor Bearings Ball
Nominal Efficiency 74.1 %
Finish Powder Coated
Hz 60
No. of Speeds 1
Motor Mounting Type Face
Shaft Material 303 Stainless Steel
Usable @ 200V No
Motor Sub Application Vertical Pump
Max. SF Amps 9.3/4.8 A
Motor Shaft Rotation CCW
Weight 17 lb
RPM Range 3,001-3,600
Regreasable Bearings Permanently Lubricated Bearings
Part Winding Start Capable No
Motor Design Permanent Split Capacitor
Usable @ 208V No
Duty Cycle Continuous
Number of Wires 3
Bearing Protection Water Slingers
