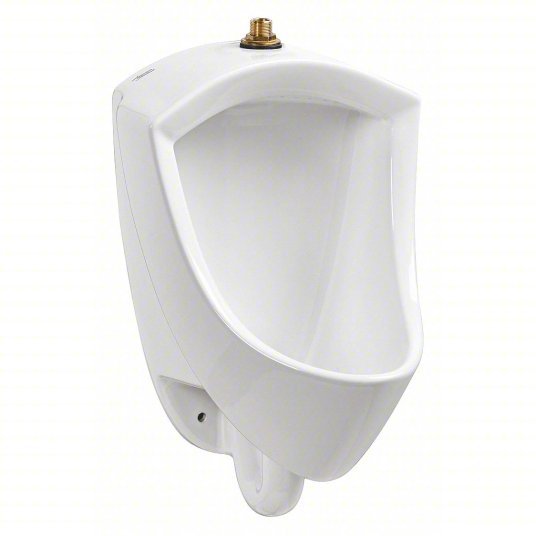

American Standard 6002001.020 Urinal, 14-7/16" D, White, 22-5/8" H
Original price
$203.76
-
Original price
$203.76
Original price
$203.76
$203.76
-
$203.76
Current price
$203.76
Wall-mount flush-valve urinals with top spud are off-the-floor fixtures that allow thorough cleaning, connect to a wall waste line, and work with an exposed flush valve for unblocked access during maintenance. These fixtures have a lower weight capacity than floor-mounted fixtures, but provide a streamlined look and full access for cleaning the floor and urinal surfaces. They have a back opening for the waste line and a spud atop the fixture for connecting to a flush valve (flushometer).
| Brand and Series | American Standard Pintbrook |
| Urinal Mounting Style | Wall |
| Spud Location | Top |
| Gallons per Flush | 0.125, 0.5 |
| ADA Compliance | Yes |
| Flush Handle | Not Included |
| Type | Washdown |
| Material of Construction | Vitreous China |
| Green Certification or Other Recognition | WaterSense Certified and California Energy Commission (CEC) Certified |
| Standards | ANSI A117.1, ASME A112.19.2/CSA B45.1 |
| Connection (In.) | 3/4 |
| Includes | Inlet Spud, Wall Hangers |
| Item | Washout Urinal |
| Collection | Pintbrook |
| Color/Finish | White |
| Green Environmental Attribute | Urinal Uses 0.5 gpf or Less |
| Cartridges Required | No |
| Mounting Style | Wall |
| Flushing Method | Washout |
| Color | White |
| Tank/Flush Valve Mfr. Model Number | 6045013.002, 6045051.002, 6063013.002, 6063051.002 |
