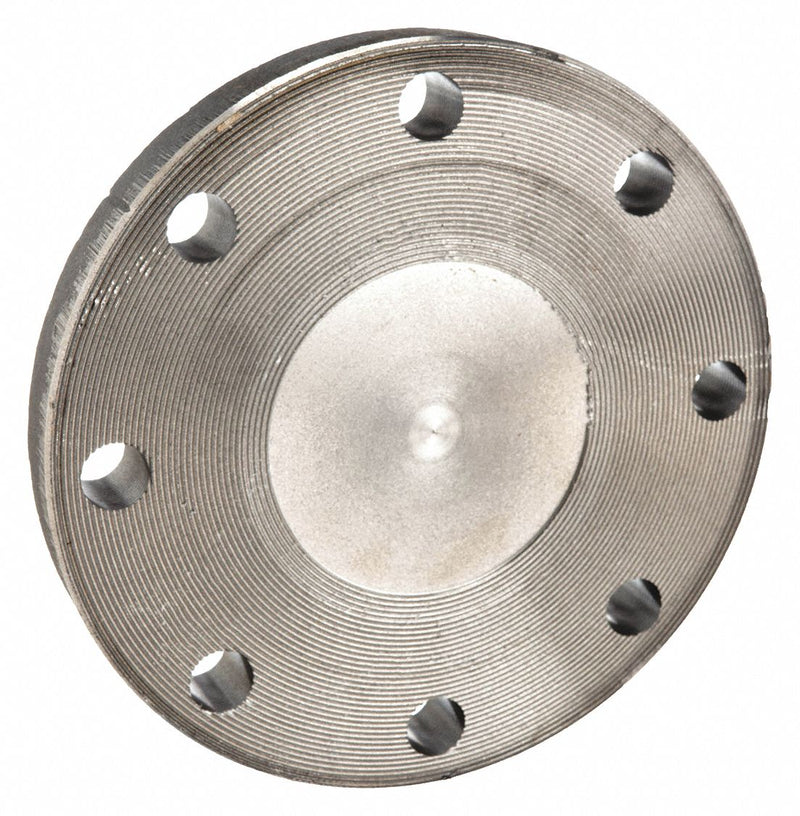

Anvil 0308017201 Metal Pipe Flange, 6 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black
Original price
$343.42
-
Original price
$343.42
Original price
$343.42
$343.42
-
$343.42
Current price
$343.42
Faced and Drilled Flange, 6 in Nominal Pipe Size, Flanged, 11 in Flange Outside Diameter, 11 in Overall Length, Cast Iron, Class Class 125, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 8
| Specific Fitting Shape | Blind Flange |
|---|---|
| Fitting Connection Type | Flanged |
| Pipe Fitting Material | Cast Iron |
| Class | Class 125 |
| Standards | UL: FM Approved: ASME B16.4 |
| Number of Holes | 8 |
| Specific Pipe Fitting Shape | Blind Flange |
| Basic Pipe Fitting Material | Metal |
| Saturated Steam Pressure | 125 psi |
| Pipe Fitting Connection Type | Flanged |
| Pipe Fitting Schedule/Class | Class 125 |
| Max. Pressure | 175 psi@-20 Degrees to 150 Degrees F |
| Temp. Range | -20 Degrees to 150 Degrees F |
| Fitting Schedule/Class | Class 125 |
| Basic Pipe Fitting Shape | Flange |
| Application | Fire Protection, Non-Potable Water |
| Number of Bolt Holes | 8 |
| Maximum Operating Pressure | 175 psi |
| Type | Faced & Drilled Threaded |
| Country of Origin | United States |
