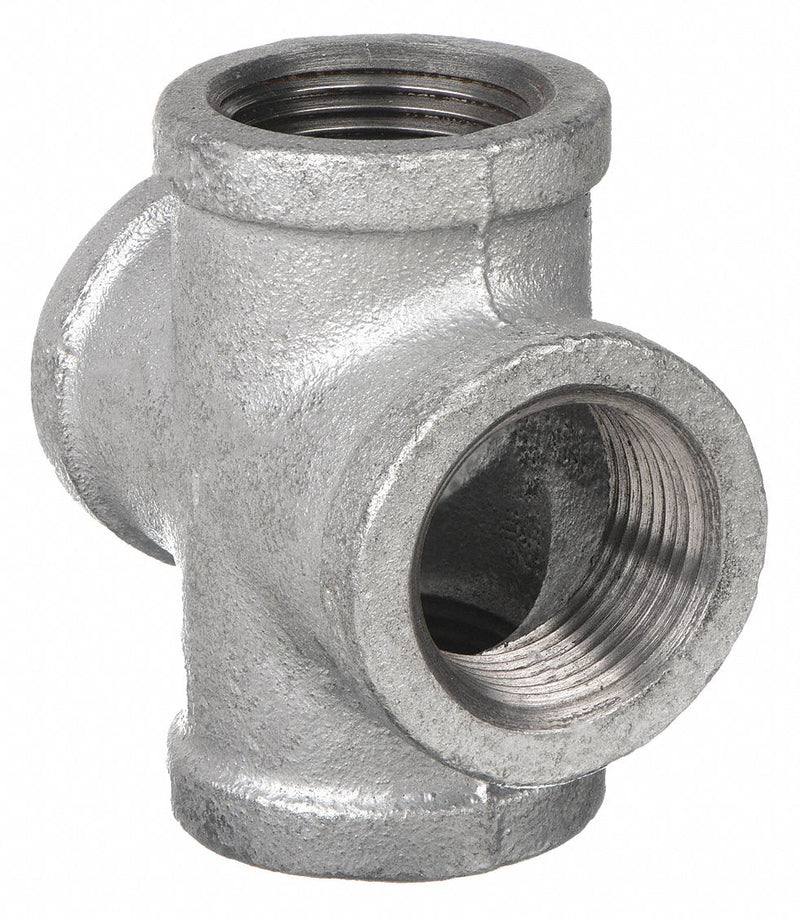

Anvil 0311070809 Metal Pipe Cross, Cross, 300 psi @ 150°F, 2 in x 2 in x 2 in x 2 in, Malleable Iron
UPC: 690291360176 | Harmonization / Schedule B : 7307.19.9060
Country of Origin: United States | Shipping Weight: 3.56 lbs
Original price
$172.20
-
Original price
$172.20
Original price
$172.20
$172.20
-
$172.20
Current price
$172.20
Cross, Body Material Galvanized Malleable Iron, Class 300, Pipe Size 2 In., Connection Type NPT, Max. Pressure 1500 psi at 150 Degrees F WOG, Saturated Steam Pressure 300 psi, Outside Dia. 5 In., Number of Holes 4, Temp. Range -20 Degrees to 150 Degrees F, Standards ASTM A-197, ASME 16.3
| Pipe Size (Fittings) | 2" |
|---|---|
| Pipe Size - Pipe Fitting | 2" |
| Fitting Side B Nominal Pipe Size | 2 in |
| Fitting Side C Nominal Pipe Size | 2 in |
| Fitting Side D Nominal Pipe Size | 2 in |
| Fitting Side A Nominal Pipe Size | 2 in |
| Pipe Size | 2" |
| Overall Length | 2 in |
| Wire Rope Length | 2 in |
| Length | 2 in |
| Specific Fitting Shape | Cross |
| Fitting Schedule/Class | Class 150 |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Cross |
| Fitting Connection Type | FNPT |
| Standards | UL Listed, FM Approved, Meets ASME 16.3, ASTM A197 |
| Max. Pressure | 300 psi @ 150 Degrees F WOG |
| Saturated Steam Pressure | 150 psi @ 350 Degrees F |
| Temp. Range | -20 Degrees to 350 Degrees F |
| Pipe Fitting Material | Malleable Iron |
| Specific Pipe Fitting Shape | Cross |
| Pipe Fitting Schedule/Class | Class 150 |
| Includes Pre-Applied Thread Sealant | No |
| Color | Silver |
| Finish/Coating | Galvanized |
| Fitting Side B Type | Threaded |
| Fitting Side C Type | Threaded |
| Includes Seal | No |
| Application | Air, Oils |
| Class | Class 150 |
| Fitting Side A Type | Threaded |
| Fitting Side B Gender | Female |
| Fitting Side A Gender | Female |
| Fitting Side C Gender | Female |
| Fitting Side D Type | Threaded |
| Fitting Side D Gender | Female |
| Maximum Operating Pressure | 300 psi @ 150 Degrees F |
| Material Grade | A197 |
| Gravity Flow | Pressure |
| Manufacture Location | Made in USA |
| Side A Thread Type | NPT |
| Side B Thread Type | NPT |
| Side 4 Thread Type | NPT |
| Side 3 Thread Type | NPT |
| Country of Origin | United States |
