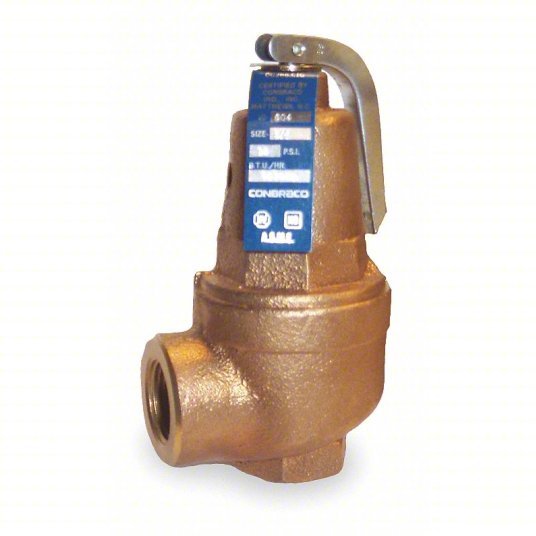

Apollo 1060534 Safety Relief Valve Bronze, FNPT, FNPT, 1 in Inlet Size, 1 in Outlet Size, 15 to 160 psi
Original price
$140.39
-
Original price
$140.39
Original price
$140.39
$140.39
-
$140.39
Current price
$140.39
Safety Relief Valve, Body Material Bronze, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 150 psi, Pressure Range 15 to 160 psi, 5,044,000 BtuH, Disc Material Brass ASTM B16, Overall Height 6 11/16 in, Application Hot Water Heating Boilers and Hot Water Supply Systems, Overall Length 4 in, Seat Material Silicone, Spring Material Plated Alloy Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Yes, Standards ASME Section IV, CRN, CSA
| Body Material | Bronze |
| Item | Safety Relief Valve |
| Outlet Type | FNPT |
| Inlet Type | FNPT |
| Disc Material | Brass ASTM B16 |
| Seat Material | Silicone |
| Test Lever | Yes |
| Application | Hot Water Heating Boilers and Hot Water Supply Systems |
| BtuH | 5,044,000 |
| Factory Set Pressure | 150 psi |
| Spring Material | Plated Alloy Steel |
| Standards | ASME Section IV, CRN, CSA |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Pressure Range | 15 to 160 psi |
