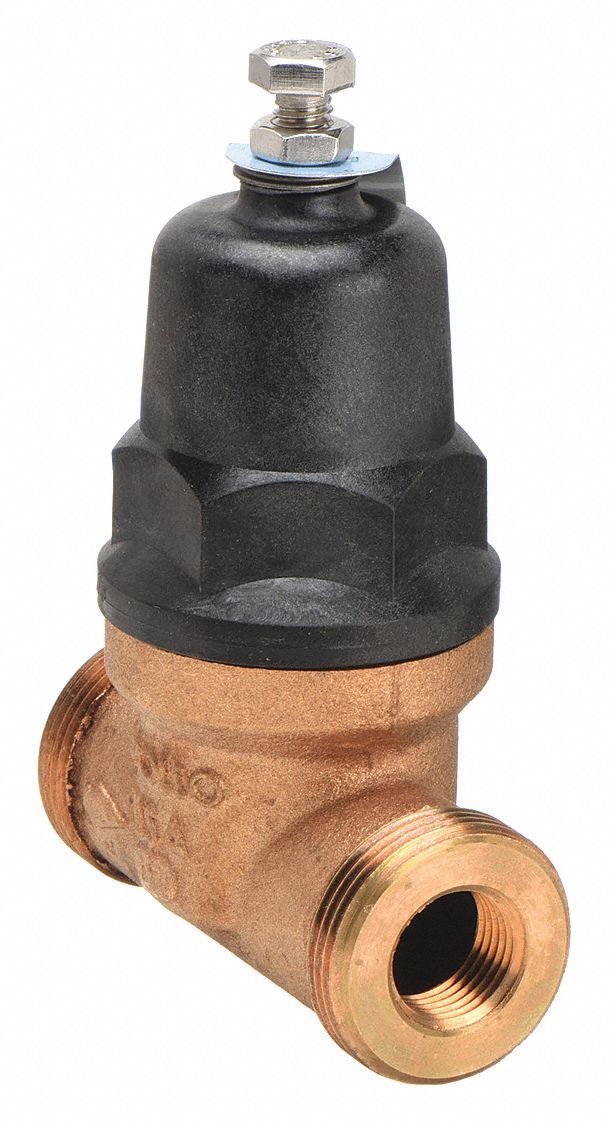

Apollo 36ELF12401T Water Pressure Reducing Valve, 3/4 in, Double Union FNPT, Lead Free Bronze, 15-75 psi
Original price
$198.04
-
Original price
$198.04
Original price
$198.04
$198.04
-
$198.04
Current price
$198.04
Valve, Pressure Reducing, Material of Construction Lead Free Bronze, Inlet/Outlet 3/4 In., Double Union NPT Connection, Max. Working Pressure (PSI) 400, Adjustable Range 15-75 psi, Pressure Setting 50 psi, Max. Temp. (F) 180, Height (In.) 6, Length (In.) 5-1/2, Certification NSF/ANSI 61 SECTION 8 2010 ANNEX F & G CA AB1953, VT ACT 193, Standards ASSE 1003/CSA B356, Compliance ARRA
| Connection Type | Double Union x FNPT Thread |
|---|---|
| Body Material | LF Bronze, UNS 89836 |
| Max. Pressure | 400 psig |
| Max. Temp. | 180 Degrees F |
| Strainer | No |
| Pressure Adjustment Range | 15 to 75 psig |
| Material | Lead Free Bronze |
| Standards | ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356 |
| Application | Commercial Use, Institutional Use, Residential Use |
| Preset Pressure Settings | 50 psi |
| Valve Type | Standard |
| Connection | Double Union FNPT |
| Material of Construction | Lead Free Bronze |
| Seat Material | EPDM |
| Disc Material | EPDM |
| Factory Set Pressure | 60 psi |
| Flow Rate - Continuous Maximum | 48 gpm |
| Operating Pressure - Maximum | 400 psi |
| Pilot Adjustment - Maximum | 75 psi |
| Inlet Connection Type | NPT |
| Operating Pressure - Minimum | 15 psi |
| Fluid Temperature - Maximum | 180 Degrees F |
| Coating/Lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Includes Strainer | Strainer Included |
| Pilot Adjustment - Minimum | 15 psi |
| For Media | Water |
| Outlet Connection Type | NPT |
| Country of Origin | United States |
