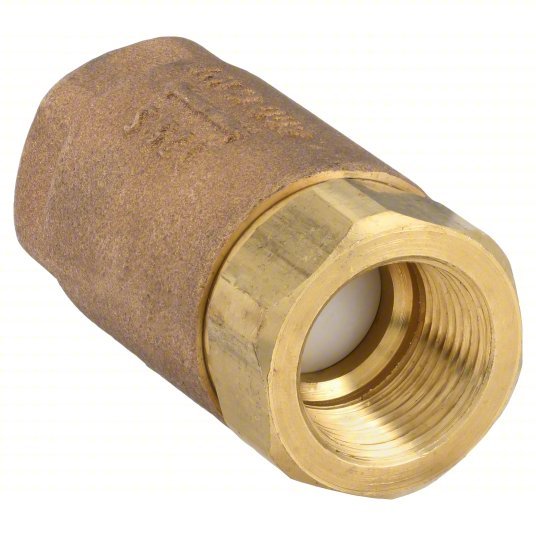

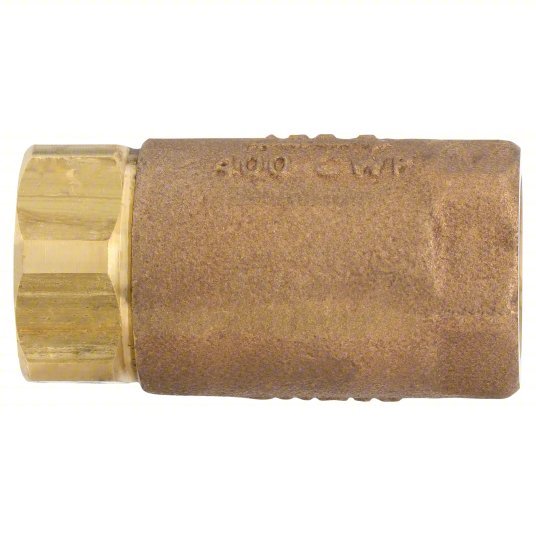

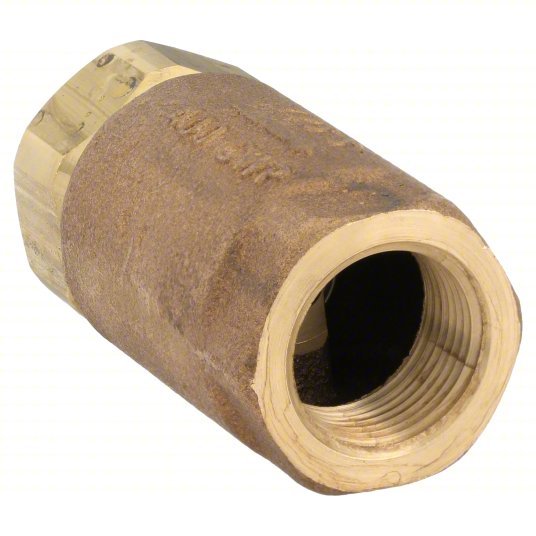

Apollo 6110001 Spring Check Valve Single Flow, Inline Ball Cone, Bronze, 3 in Pipe/Tube Size
Original price
$772.49
-
Original price
$772.49
Original price
$772.49
$772.49
-
$772.49
Current price
$772.49
Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Bronze, Pipe or Tube Size 3 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves 125 psi WSP, Seat Material RPTFE, Spring Material Stainless Steel
| Connection | FNPT |
| Body Material | Cast Bronze |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Max. Temp. - Valves | 180 Degrees F |
| Max. Temp. | 406 Degrees F |
| Cracking Pressure | 0.5 psi |
| Sub-Category | Bronze |
| Flow Design | Single |
| Max. Steam Pressure | 125 psi SWP |
| Application - Valves | General Purpose |
| Max. Water Pressure | 400 psi Non Shock CWP |
| Cracking Pressure - Check Valves | 0.5 psi |
| Spring Material - Check Valves | Stainless Steel |
| Seal Material - Check Valves | EPDM |
| Material of Construction | Bronze |
| Body Material - Valves | Bronze |
| Standards | Canadian Reg. No: 0C11218.5C |
| Mechanism and Body Design | Inline Ball Cone |
| Item | Ball Cone Spring Check Valve |
| Min. Temp. - Valves | 33 Degrees F |
| Connection Type - Check Valves | FNPT x FNPT |
| Item - Check Valves | Check Valve |
| Max. Water Pressure - Valves | 400 psi |
| Spring Material | Stainless Steel |
| Seat Material | RPTFE |
| Seat Material - Check Valves | RPTFE |
| Max. Pressure | 400 psi @ 100 Degrees F, Steam: 125 psi @ 350 Degrees F |
| Mounting Position | Vertical or Horizontal |
| Max. Steam Pressure - Valves | 125 psi WSP |
| Seal Material | EPDM |
| Mounting Orientation | Horizontal, Vertical |
