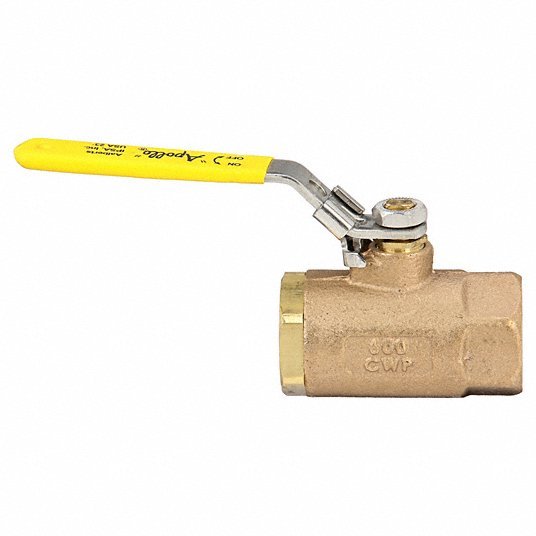

Apollo 7010527 Manual Two-Way Ball Valve 1 in, Bronze, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)
Original price
$108.19
-
Original price
$108.19
Original price
$108.19
$108.19
-
$108.19
Current price
$108.19
Bronze ball valves have one inlet and one outlet port, are corrosion-resistant and suited for high-temperature applications. They're used in commercial and industrial applications, and they open and close with a handle.
| Handle Material | Steel |
| Seat Material | RPTFE |
| Max. Pressure | 600 PSI CWP |
| Handle Type | Lever |
| Stem Type | Blowout Proof |
| Body Style | Inline |
| Item | Ball Valve |
| Compliance | MSS SP-110 |
| Body Material | Bronze |
| Standards | ARRA Compliant, ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN |
| Ball Valve Product Group | Manual |
| Valve Structure | Two-Piece |
| Connection Type | FNPT x FNPT |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Chrome Plated Bronze |
| Stem Material | Brass |
| Seal Material | PTFE |
| Type | Two Piece, Locking Handle |
| For Media | Steam |
| Cleaned and Bagged | Not Cleaned and Bagged |
| Ball Port Style | Standard Port |
| Color - Valve Body | Bronze |
| Color - Valve Handle | Yellow |
| Coefficient of Volume (Cv) | 0.01 |
| Maximum Pressure - Combustible Gas | Not Rated |
| Handle - Locking | Locking |
| Connection Type - Side 2 | NPT |
| Connection Gender - Side 1 | Female |
| Vacuum Service Rating | 29 in Hg |
| Operating Temperature - Maximum | 500 Degrees F |
| Connection Type - Side 1 | NPT |
| Maximum Pressure - Steam | 150 PSI WSP |
| Valve Ways | 2-Way |
| Operating Temperature - Minimum | -20 Degrees F |
| Connection Gender - Side 2 | Female |
| 3-A Standard Compliance | Not Rated |
| Valve Series | 70 |
