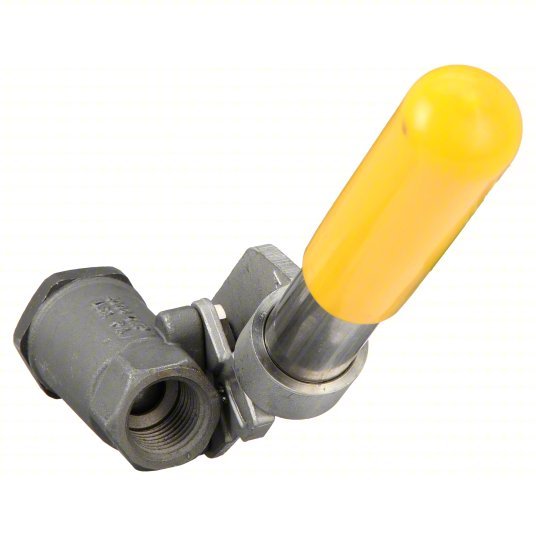

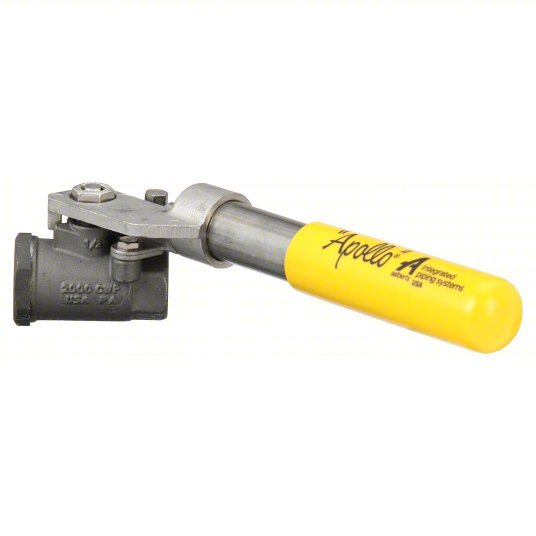

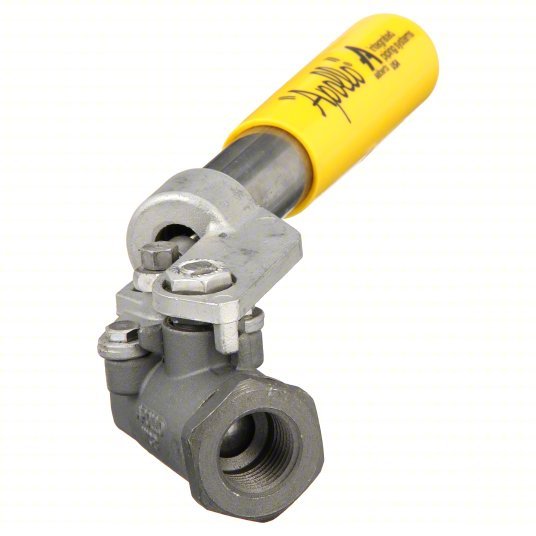

Apollo 8950301A Manual Two-Way Ball Valve 1/2 in, Carbon Steel, Straight, FNPT x FNPT, Std Port Ball Port

Manual Two-Way Ball Valve, Body Material Carbon Steel, For Media Steam, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 2,000 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Stainless Steel, Ball Port Style Standard Port, Handle - Locking Non-Locking

Body Material	Carbon Steel
Body Style	Inline
Port	Standard
Seat Material	PTFE
Max. Pressure	2000 psi CWP
Ball Valve Basic Body Material	Carbon Steel
Ball Valve Product Group	Manual
Compliance	ISO 9001
Stem Material	316 Stainless Steel
Ball Material	Chrome Plated Carbon Steel
Stem Type	Blowout Proof
Temp. Range	20 Degrees to 500 Degrees F
Features	Mounting Pad for Actuation
Handle Type	Spring Return
Valve Structure	2-Piece
Handle Material	304 Stainless Steel with Vinyl Grip
Item	Ball Valve
Standards	MSS-SP-110, A108
Body Seal Material	PTFE
Connection Type	FNPT x FNPT
Max. Steam Pressure	150 PSI WSP
Seal Material	PTFE
Type	Two Piece
Connection	FNPT
Material of Construction	Carbon Steel
Sub-Category	Steel Ball Valves
Handle - Locking	Non-Locking
Valve Ways	2-Way
Connection Type - Side 1	NPT
Maximum Pressure - Combustible Gas	Not Rated
Valve Body Style	Straight
Connection Gender - Side 1	Female
Manufacturer Warranty	5 yr
Connection Type - Side 2	NPT
Color - Valve Handle	Yellow
Coefficient of Volume (Cv)	0.01
For Media	Steam
Included Mounting	Actuator Mounting Pad
Maximum Pressure - Operating	2,000 psi
Maximum Pressure - Steam	150 psi
Pipe Schedule Compatibility	Schedule 40
3-A Standard Compliance	Not Rated
Operating Temperature - Maximum	500 Degrees F
Ball Port Style	Standard Port
Operating Temperature - Minimum	20 Degrees F
Connection Gender - Side 2	Female
Vacuum Service Rating	29 in Hg
Valve Construction	Two-Piece
