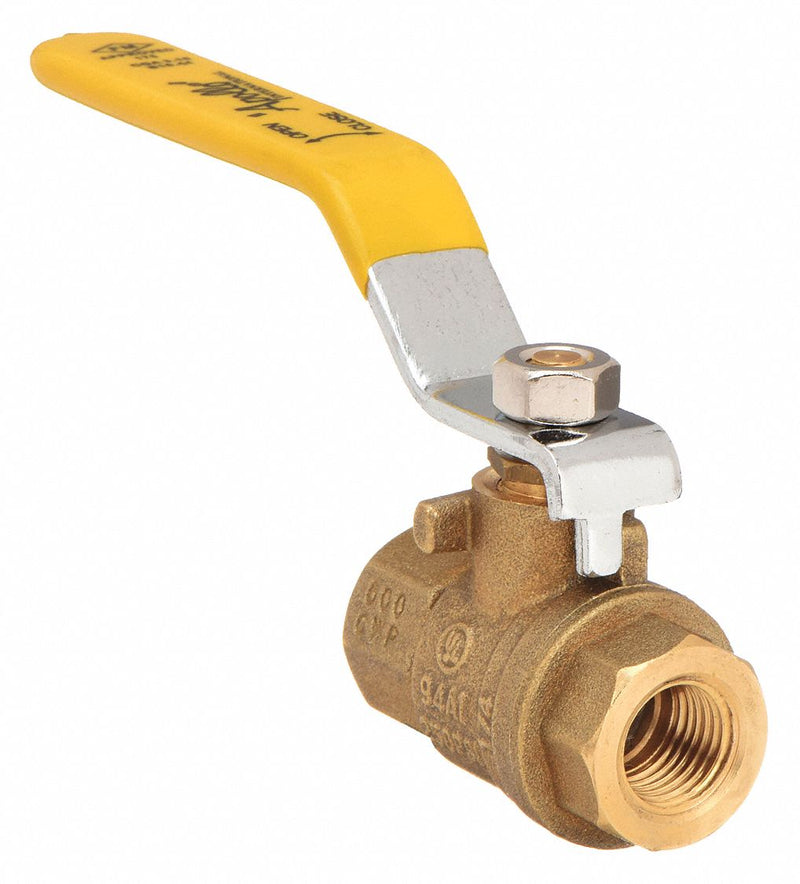

Apollo 94A10101 Manual Two-Way Ball Valve, 1/4 in, Brass, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)
UPC: 670750823206 | Harmonization / Schedule B : 8481.80.1085
Country of Origin: China | Shipping Weight: 0.35 lbs
Original price
$14.71
-
Original price
$14.71
Original price
$14.71
$14.71
-
$14.71
Current price
$14.71
Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking
| Pipe Size | 1/4 in |
|---|---|
| Overall Length | 1.76 in |
| Connection Size - Side 1 | 1/4 in |
| Nominal Valve Size | 1/4 in |
| Handle Length | 3.58 in |
| Connection Size - Side 2 | 1/4 in |
| Handle Height | 1.73 in |
| Wire Rope Length | 1.76 in |
| Length | 1.76 in |
| Ball Material | Chrome-Plated Brass |
| Body Style | Inline |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Two-Piece |
| For Media | Combustible Gases |
| Connection Type | FNPT x FNPT |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Ball Valve Product Group | Manual |
| Handle Type | Lever |
| Handle Material | PVC, Steel |
| Standards | CSA, FM |
| Max. Pressure | 600 PSI CWP |
| Compliance | MSS SP-110 |
| Stem Type | Blowout Resistant |
| Seat Material | PTFE |
| Features | General Purpose |
| Body Material | Brass |
| Stem Material | Brass |
| Seal Material | EPDM |
| Type | Two Piece |
| Connection Type - Side 2 | NPT |
| Meets UL Flammable Gas and Liquid Standards | UL 125, UL 1477, UL 842 |
| Connection Gender - Side 2 | Female |
| Operating Temperature - Maximum | 400 Degrees F |
| Connection Type - Side 1 | NPT |
| Operating Temperature - Minimum | 0 Degrees F |
| 3-A Standard Compliance | Not Rated |
| Cleaned and Bagged | Not Cleaned and Bagged |
| Coefficient of Volume (Cv) | 0 |
| Handle - Locking | Non-Locking |
| Maximum Pressure - Combustible Gas | Not Rated |
| Connection Gender - Side 1 | Female |
| Color - Valve Handle | Yellow |
| Maximum Pressure - Steam | Not Rated |
| Valve Series | 94A |
| Valve Body Style | Straight |
| Maximum Pressure - Operating | 600 psi |
| Manufacturer Warranty | 2 yr |
| Valve Construction | Two-Piece |
| Country of Origin | China |
