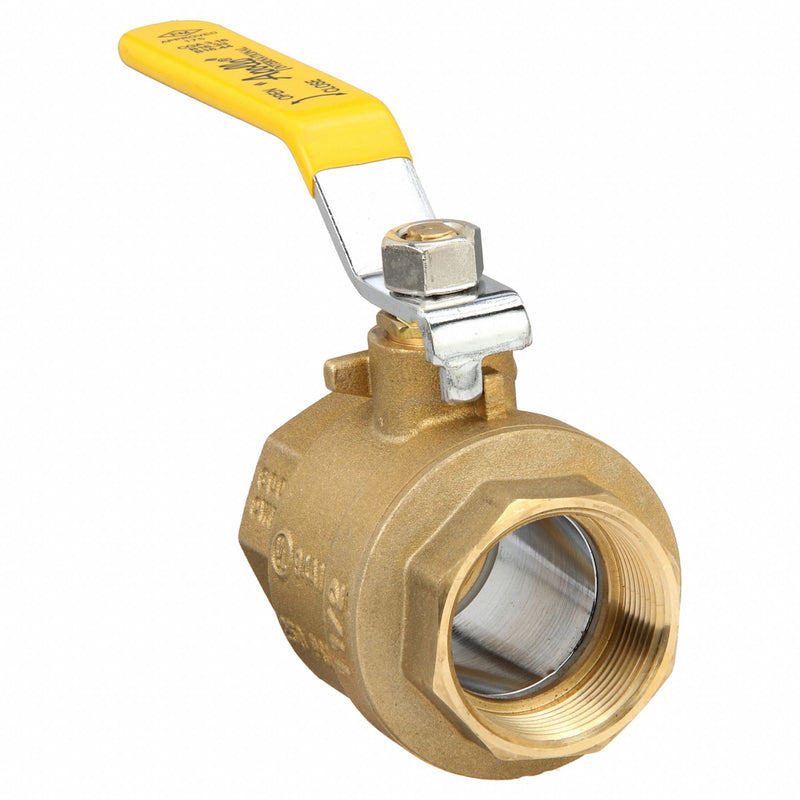

Apollo 94A10701 Manual Two-Way Ball Valve, 1 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port, Lever
UPC: 670750823411 | Harmonization / Schedule B : 8481.80.1085
Country of Origin: China | Shipping Weight: 2.45 lbs
The APOLLO VALVES 94A10701 is a manual 2-way ball valve with a two-piece forged brass body and a full port design. It has 1-1/2 in female NPT connections on both ends for inline installation and is used for general flow control applications. The valve is listed for combustible gases and has a temperature range of 0 to 400 degrees F with a maximum pressure rating of 600 PSI CWP. Key features of the APOLLO VALVES 94A10701: Full port ball: Chrome plated brass ball with full port opening helps maintain flow through the valve. Body and construction: Forged brass inline body with two-piece valve structure. Connections: 1-1/2 in FNPT x FNPT ends with female NPT threads on both sides. Stem design: Blowout-resistant brass stem with adjustable stem packing nut. Seat and seals: PTFE seats and EPDM seals. Handle: Yellow lever handle made of PVC and steel; non-locking design. Testing: 100% factory tested. Standards: MSS SP-110; UL 125, UL 1477, UL 842; CSA; FM.
| Pipe Size | 1 1/2 in |
|---|---|
| Overall Length | 3.66 in |
| Handle Height | 3.37 in |
| Connection Size - Side 1 | 1 1/2 in |
| Handle Length | 5.55 in |
| Nominal Valve Size | 1 1/2 in |
| Connection Size - Side 2 | 1 1/2 in |
| Wire Rope Length | 3.66 in |
| Length | 3.66 in |
| MFR # | 94A10701 |
| Zoro # | G2759041 |
| UPC # | 670750823411 |
| Country of Origin | China |
| Ball Material | Chrome-Plated Brass |
| Body Style | Inline |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Two-Piece |
| For Media | Combustible Gases |
| Connection Type | FNPT x FNPT |
| Compliance | MSS SP-110 |
| Temp. Range | 0 Degrees to 400 Degrees F |
| Handle Type | Lever |
| Handle Material | PVC, Steel |
| Stem Type | Blowout Resistant |
| Features | General Purpose |
| Standards | CSA, FM |
| Stem Material | Brass |
| Body Material | Brass |
| Seat Material | PTFE |
| Ball Valve Product Group | Manual |
| Max. Pressure | 600 PSI CWP |
| Seal Material | EPDM |
| Type | Two Piece |
| Connection Gender - Side 2 | Female |
| Connection Gender - Side 1 | Female |
| Operating Temperature - Maximum | 400 Degrees F |
| Meets UL Flammable Gas and Liquid Standards | UL 125, UL 1477, UL 842 |
| Handle - Locking | Non-Locking |
| Maximum Pressure - Combustible Gas | Not Rated |
| Cleaned and Bagged | Not Cleaned and Bagged |
| Connection Type - Side 1 | NPT |
| 3-A Standard Compliance | Not Rated |
| Color - Valve Handle | Yellow |
| Connection Type - Side 2 | NPT |
| Operating Temperature - Minimum | 0 Degrees F |
| Maximum Pressure - Steam | Not Rated |
| Coefficient of Volume (Cv) | 0 |
| Valve Series | 94A |
| Manufacturer Warranty | 2 yr |
| Valve Construction | Two-Piece |
| Maximum Pressure - Operating | 600 psi |
| Valve Body Style | Straight |
| Country of Origin | China (subject to change) |
