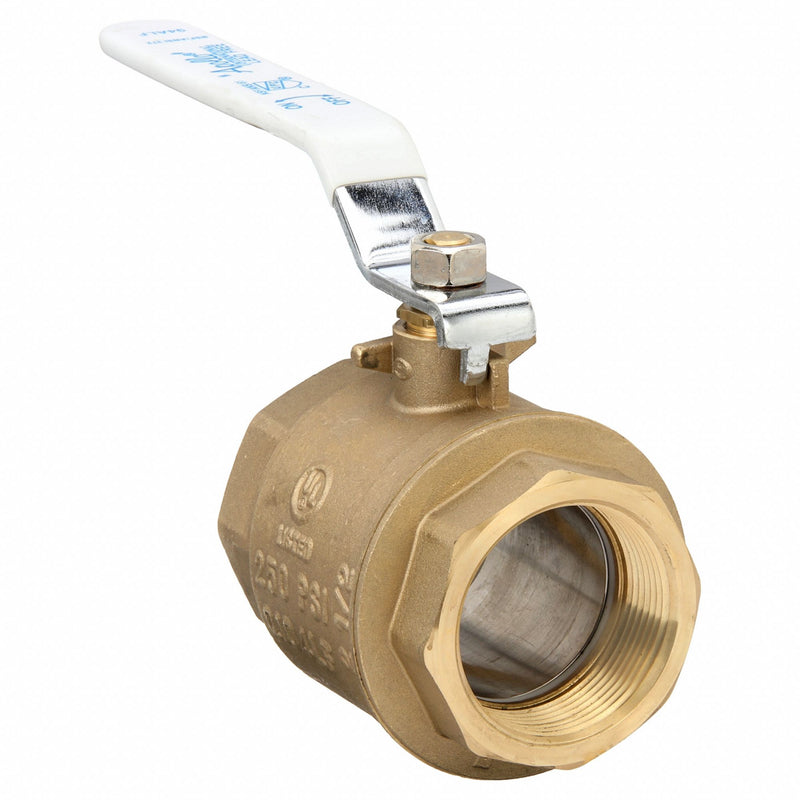

Apollo 94ALF-109-01A Manual Two-Way Ball Valve, 2 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port
UPC: 670750968266 | Harmonization / Schedule B : 8481.80.1085
Country of Origin: China | Shipping Weight: 7.94 lbs
Original price
$305.14
-
Original price
$305.14
Original price
$305.14
$305.14
-
$305.14
Current price
$305.14
Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 2 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever
| Pipe Size | 2 1/2 in |
|---|---|
| Overall Length | 5.38 in |
| Handle Height | 4.65 in |
| Connection Size - Side 1 | 2 1/2 in |
| Connection Size - Side 2 | 2 1/2 in |
| Nominal Valve Size | 2 1/2 in |
| Handle Length | 8.7 in |
| Wire Rope Length | 5.38 in |
| Length | 5.38 in |
| MFR # | 94ALF-109-01A |
| Zoro # | G6157733 |
| UPC # | 670750968266 |
| Country of Origin | China |
| Ball Material | 316 Stainless Steel |
| Body Style | Inline |
| Ball Port Style | Full Port |
| Valve Ways | 2-Way |
| Valve Structure | Two-Piece |
| For Media | Water |
| Connection Type | FNPT x FNPT |
| Stem Material | Brass |
| Seat Material | PTFE |
| Standards | Material Quality C27451 (Lead-Free), NSF |
| Handle Material | Plated Steel, PVC |
| Stem Type | Blowout Resistant |
| Ball Valve Product Group | Manual |
| Compliance | MSS SP-110 |
| Max. Pressure | 400 PSI CWP |
| Temp. Range | -20 Degrees to 366 Degrees F |
| Hose I.D. | 2 1/2 in |
| Features | Distinctive White Lead Free Handle Grip and Blue Lead Free Hang Tag |
| Body Material | Brass |
| Handle Type | Lever |
| Seal Material | PTFE |
| Meets UL Flammable Gas and Liquid Standards | UL 125, UL 1477, UL 842 |
| Connection Type - Side 1 | NPT |
| Connection Gender - Side 1 | Female |
| Handle - Locking | Non-Locking |
| Connection Type - Side 2 | NPT |
| Operating Temperature - Maximum | 400 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Cleaned and Bagged | Not Cleaned and Bagged |
| Coefficient of Volume (Cv) | 0.01 |
| 3-A Standard Compliance | Not Rated |
| NSF Certifications for Food and Drinking Water | NSF 61 |
| Color - Valve Handle | Yellow |
| Maximum Pressure - Combustible Gas | Not Rated |
| Connection Gender - Side 2 | Female |
| Maximum Pressure - Steam | Not Rated |
| Valve Series | 94A |
| Valve Construction | Two-Piece |
| Valve Body Style | Straight |
| Maximum Pressure - Operating | 400 psi |
| Country of Origin | China (subject to change) |
