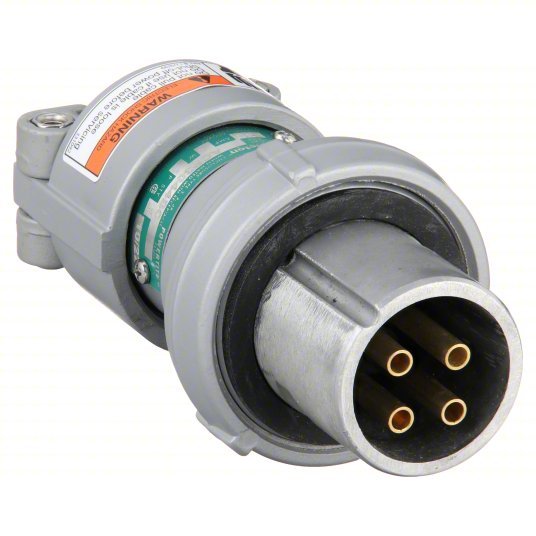

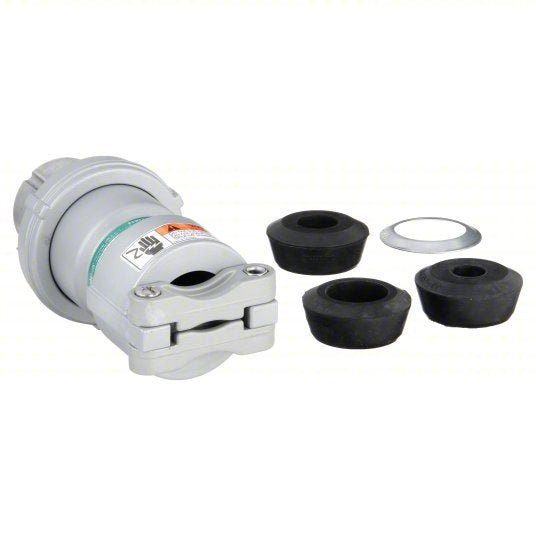

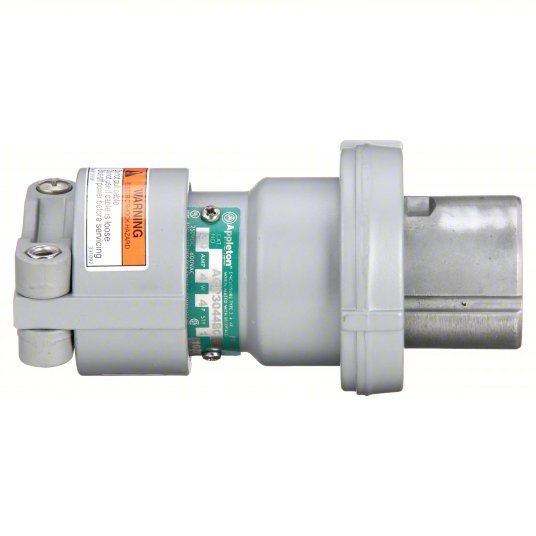

Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating
Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating
Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating
Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating
Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating
Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating

Appleton ACP3034BC Plug 30 A, 600V AC, Style 2 Grounding, 20 hp Horsepower Rating

$752.01 - $752.01
$752.01
$752.01 - $752.01
$752.01
Plug, Current Rating 30 A, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 20 hp, Housing Color Gray, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Cap Type Screw-On Cap, Connection Orientation Straight, Face Diameter 1.86 in, For Maximum Cable Diameter 1.125 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2
Voltage 600V AC
NEMA Rating 3, 3R, 4, 4X
Amps 30 A
Standards CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784
HP 20 hp
Number of Wires 3
Number of Poles 4
Material Copperfree Aluminum
Features Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage
Insulation Material Fiberglass-Reinforced Polyester
Compatible with Series FSQC
Housing Material Finish Epoxy Coat with Powder Finish
Housing Material Metallic
For Environment Hazardous Location
Phase Three
NEMA Enclosure Rating 3, 3R, 4, 4X, 7CD, 9FG
Grounding Style Style 2
Grounding Grounded
Current Rating 30 A
Cap Type Screw-On Cap
Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Polarized Yes
Horsepower Rating 20 hp
Pin & Sleeve Standards CSA Certifications, UL 1682, UL Listed
Voltage Rating 600V AC
Pin & Sleeve Standards` UL 1682
Connection Orientation Straight
Housing Color Gray
Reverse Service No
Switch Rated No
Hazardous Area Classification Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG
Wire Range 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
Amperage 30, 60 or 100
Mounting Box Entries Feed-Thru
Materials and Finishes Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.
