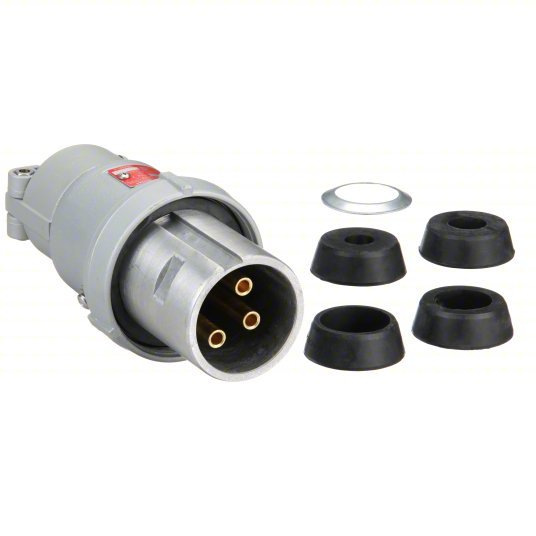

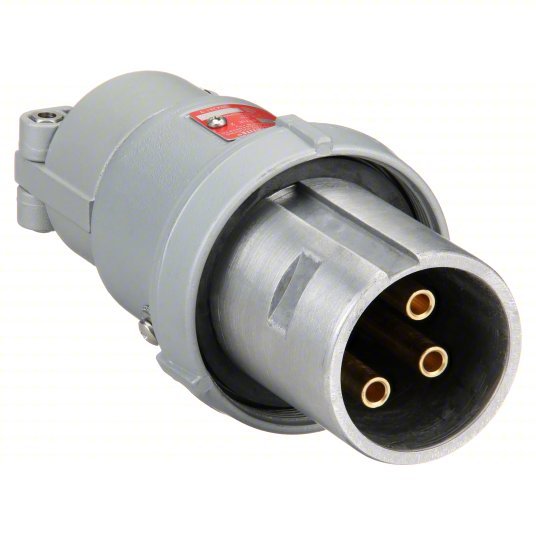

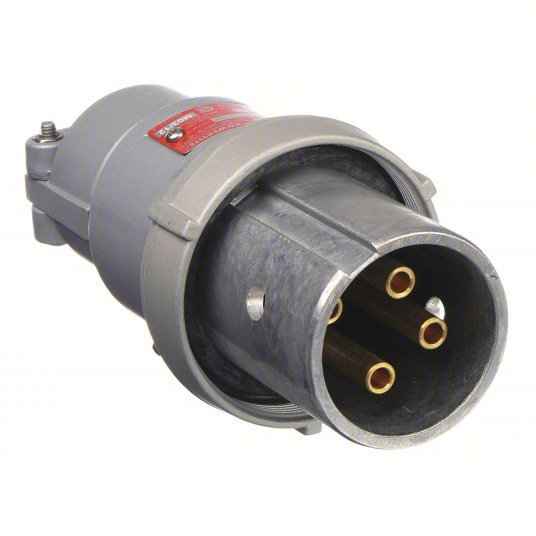

Appleton ACP6034BC Plug 60 A, 600V AC, Style 2 Grounding, 30 hp Horsepower Rating

Plug, Current Rating 60 A, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 30 hp, Housing Color Gray, Number of Poles 4, Number of Wires 3, Phase Three, Voltage Rating 600V AC, Cap Type Screw-On Cap, Connection Orientation Straight, Face Diameter 2.23 in, For Maximum Cable Diameter 1.375 in, For Minimum Cable Diameter 0.5 in, Grounding Grounded, Grounding Style Style 2

Voltage	600V AC
NEMA Rating	3, 3R, 4, 4X
Amps	60 A
Standards	CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784
Number of Wires	3
Number of Poles	4
Material	Copperfree Aluminum
Features	Auxiliary Contacts 1NO + 1NC, Special Polarization: Prevents Plug Insertion in a Receptacle or Connector Wired for a Different Voltage
Housing Material Finish	Epoxy Coat with Powder Finish
Pin & Sleeve Standards	CSA Certifications, UL 1682, UL Listed
For Environment	Hazardous Location
Grounding	Grounded
Compatible with Series	FSQC
Phase	Three
Hazardous Location Specification	Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Polarized	Yes
Insulation Material	Fiberglass-Reinforced Polyester
Current Rating	60 A
Horsepower Rating	30 hp
NEMA Enclosure Rating	3, 3R, 4, 4X, 7CD, 9FG
Voltage Rating	600V AC
Cap Type	Screw-On Cap
Housing Material	Metallic
Grounding Style	Style 2
Pin & Sleeve Standards`	UL 1682
Housing Color	Gray
Switch Rated	No
Reverse Service	No
Connection Orientation	Straight
Hazardous Area Classification	Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG
Materials and Finishes	Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.
Amperage	30, 60 or 100
Mounting Box Entries	Feed-Thru
Wire Range	30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
