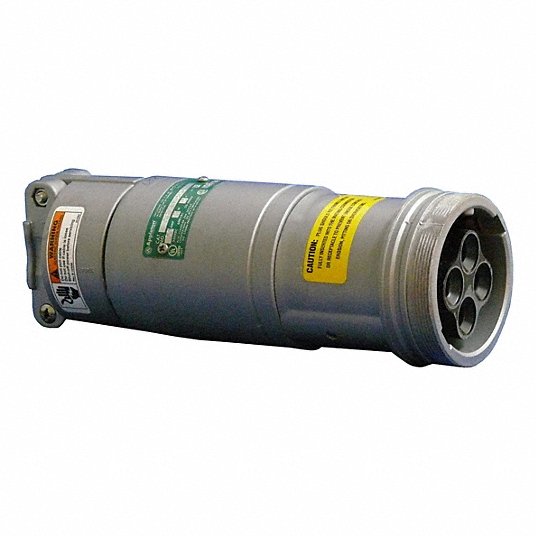

Appleton ARC1034CD Powertite 100A 600V 4P3W Pin & Sleeve Connector Body, NEMA 4X

Appleton ARC1034CD Powertite 100A 600V 4P3W Pin & Sleeve Connector Body, NEMA 4X

$1,736.22 - $1,736.22
$1,736.22
$1,736.22 - $1,736.22
$1,736.22

The Appleton ARC1034CD Powertite connector body delivers a rugged, watertight solution for supplying power to portable or fixed equipment in demanding industrial applications. Rated 100A at 600VAC (50–400 Hz) and 250VDC, this 4‑pole, 3‑wire, 3‑phase grounding Style 2 device is ideal for motor generator units, welders, pumps, compressors, cellular relay stations, ship‑to‑shore power and general rough‑usage construction sites.

Constructed of epoxy powder‑coated, copper‑free aluminum, the ARC1034CD withstands corrosion, impact, and harsh weather, while its NEMA 3/3R/4/4X enclosure rating provides reliable protection against rain, hose‑directed water, and corrosive environments. Natural finish glass‑filled polyester insulating blocks offer high dielectric strength and excellent arc‑tracking resistance for safe operation under heavy load.

Controlled‑length contacts ensure the equipment ground makes first and breaks last, improving personnel and equipment safety during connection and disconnection. The pressure‑wire terminals maintain secure electrical contact, and the neoprene bushing—compressed by the cable collar—helps seal out water while resisting hydrocarbon deterioration and providing self‑extinguishing performance.

This connector body accepts cable diameters from approximately 0.875 in to 1.906 in (depending on catalog source) and is designed to mate with compatible Appleton Powertite plugs in the same amperage, voltage and grounding configuration. It complies with UL 1682, UL 1686, UL 50E and CSA C22.2 No. 182.1, and is UL Listed and CSA certified for use in industrial power distribution systems.

Use the Appleton ARC1034CD when you need a reliable connector body that stands up to vibration, moisture, and demanding service conditions, while maintaining secure, safe and code‑compliant connections.

Key features

  • 100A, 600VAC (50–400 Hz), 250VDC rating for 3‑phase power applications.

  • 4‑pole, 3‑wire, 3‑phase grounding Style 2 configuration.

  • NEMA 3/3R/4/4X watertight and corrosion‑resistant enclosure rating.

  • Epoxy powder‑coated copper‑free aluminum housing for durability and corrosion resistance.

  • Glass‑filled polyester insulating blocks for high dielectric strength and low arc tracking.

  • Controlled‑length contacts so ground makes first and breaks last for added safety.

  • Neoprene bushing with cable collar to seal against water and resist hydrocarbons.

  • Pressure‑wire terminals for secure electrical connections.

  • Accepts cable O.D. approximately 0.875 in to 1.906 in (check manufacturer data for exact range).

  • Suitable for motors, generators, welders, pumps, compressors, relay stations, docks, ports and rough‑usage industrial environments.

  • UL 1682, UL 1686, UL 50E and CSA C22.2 No. 182.1 compliant; UL Listed and CSA Certified.

Technical specifications (Shopify “Specs” section)

  • Brand: Appleton (Emerson Electric)

  • Series: Powertite ARC

  • Catalog number: ARC1034CD

  • Current rating: 100 A

  • Voltage rating: 600 VAC (50–400 Hz), 250 VDC

  • Poles: 4

  • Wires: 3

  • Phase: 3‑phase, grounding Style 2

  • Material: Copper‑free aluminum housing, glass‑filled polyester insulators, neoprene bushing.

  • Enclosure rating: NEMA 3/3R/4/4X (watertight, corrosion‑resistant).

  • Cable O.D.: approx. 0.875 in – 1.906 in (per distributor data).

  • Temperature range: −40 to 225 °F (−40 to 107 °C).

  • Dimensions: approx. 16 in L x 4‑1/4 in W.

  • Country of origin: Mexico (MX).

  • Standards: UL 1682, UL 1686, UL 50E; CSA C22.2 No. 182.1; NEMA FB11.

  • UPC: 781381440516.
