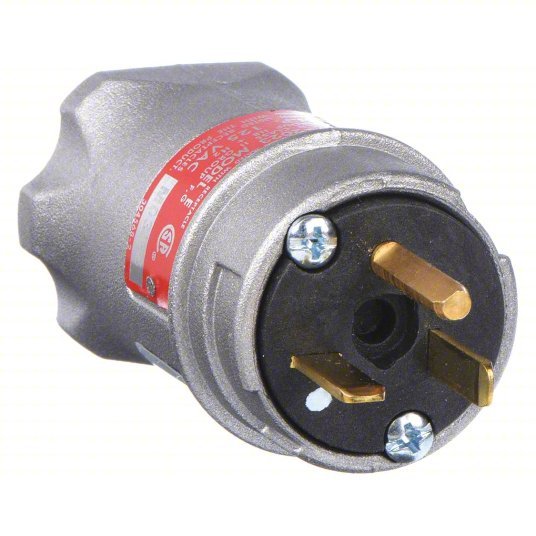

Appleton ECP-2023 Plug 5-20P, 20 A, 125V AC, 3 Poles, Metallic
Original price
$338.04
-
Original price
$338.04
Original price
$338.04
$338.04
-
$338.04
Current price
$338.04
| Voltage | 120 V AC |
| NEMA Rating | 3, 3R, 7BCD, 9FG |
| Amps | 20 A |
| Standards | UL Listed |
| HP | 1 hp |
| Number of Wires | 3 |
| Number of Poles | 3 |
| NEMA Type | 5-20P |
| Material | Copper-Free Aluminum |
| Hz | 60 |
| Connection Orientation | Straight |
| Current Rating | 20 A |
| NEMA Plug Configuration | 5-20P |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, Class III, Div 1 and 2 |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| NEMA Configuration | 5-20 |
| UL 94 Flammability Rating | Not Rated |
| Resistance Properties | Corrosion Resistant |
| Polarized | No |
| Blade Material | Brass |
| Grounding | Grounded |
| Market | Commercial |
| For Environment | Hazardous Location |
| NEMA Enclosure Rating | 4 |
| Housing Material | Metallic |
| Phase | Single |
| Wiring Style | Standard |
| Compatible with Series | ECCL/ECC; ECH/ECHT; ECS; N1; N2 |
| Number of Blades | 3 |
| Grade | General Use |
| IP Rating | Not Rated |
| Shrouded | No |
| Housing Color | Gray |
| Horsepower Rating | 1 hp |
| Insulation Material | Thermoplastic |
