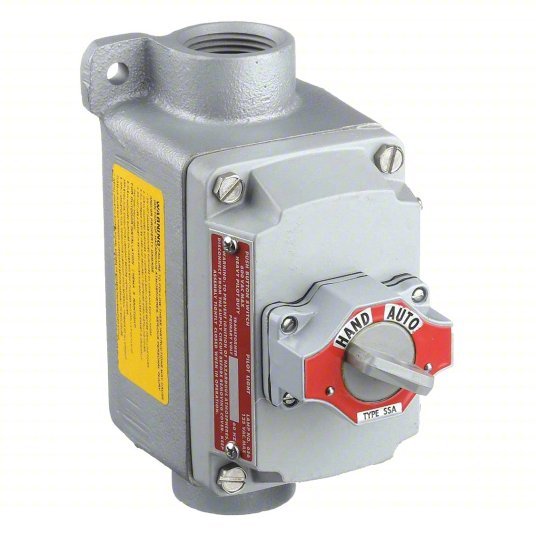

Appleton EFDCB110-12 Selector Switch Control Station Maintained / Maintained, 1 Operators, Hand/Auto

Appleton EFDCB110-12 Selector Switch Control Station Maintained / Maintained, 1 Operators, Hand/Auto

$635.57 - $635.57
$635.57
$635.57 - $635.57
$635.57
Selector Switch Control Station, Number of Gangs 1, Number of Operators 1, Contact Rating 10A @ 600V AC, Hub Style Feed-Thru, Hub Size 1 in, Type of Operator Selector Switch, Action Maintained / Maintained, Contact Form 1NO/1NC, Series EFDCB, NEMA Rating 7, 9, IP Rating 54, Legend Hand/Auto, Mounting Surface, Height 4.63 in, Width 3 in, Depth 1.6 in, Enclosure Material Malleable Iron Body and Aluminum Cover, Standards UL 1203, UL 508, UL 698
Number of Gangs 1
Contact Form 1NO/1NC
Legend Hand/Auto
Type of Operator Selector Switch
Number of Operators 1
Series EFDCB
Hub Style Feed-Thru
NEMA Rating 7, 9
Standards UL 1203, UL 508, UL 698
Contact Rating 10A @ 600V AC
Action Maintained / Maintained
Mounting Surface
Safety Rating Class 1, Division 1 and 2, Groups B, C, D; Class 2, Division 1 and 2, Groups E, F, G; and Class 2I
IP Rating 54
Enclosure Material Malleable Iron Body and Aluminum Cover
