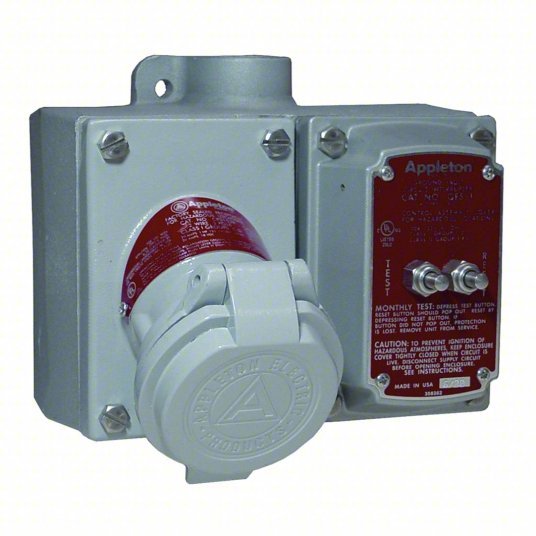

Appleton EFS250A-2023GFI GFCI Receptacle Dead End, 0.5 in Hub Dia, 5-20R, 20 A, 125V AC, 3 Poles, 2 Gangs, Circuit Breaker
Original price
$3,215.10
-
Original price
$3,215.10
Original price
$3,215.10
$3,215.10
-
$3,215.10
Current price
$3,215.10
GFCI Receptacle, Circuit Breaker Yes, Current Rating 20 A, GFCI Yes, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Horsepower Rating 1 hp, Housing Material Copper-Free Aluminum, Hub Type Dead End, NEMA Enclosure Rating 3, 3R, 3RX, 7BCD, 9FG, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Resistance Properties Dust Ignition Proof, Explosion Proof
| Item | GFCI Receptacle |
| Voltage | 120 V AC |
| NEMA Rating | 3, 3R, 7BCD, 9EFG |
| Amps | 20 A |
| Standards | cUL Listed, UL Listed |
| Number of Wires | 2 |
| Number of Poles | 3 |
| NEMA Type | 5-20R |
| Material | Copper-Free Aluminum |
| Finish | Baked Gray Epoxy Clad Finish |
| Mounting Box | 2 Gang, Copperfree Aluminum |
| Hz | 60 |
| Hub Style | Dead-end |
| Screws | Stainless Steel |
| Circuit Breaker | Yes |
| For Environment | Hazardous Location |
| GFCI | Yes |
| NEMA Configuration | 5-20 |
| Hub Type | Dead End |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Voltage Rating | 125V AC |
| Current Rating | 20 A |
| Features | Factory-Sealed |
| NEMA Enclosure Rating | 3, 3R, 3RX, 7BCD, 9FG |
| Housing Material Finish | Epoxy Powder Coated |
| Horsepower Rating | 1 hp |
| NEMA Receptacle Configuration | 5-20R |
| Housing Material | Copper-Free Aluminum |
| Current Protection Type | GFCI: Yes - Circuit Breaker: Yes |
| Includes Mounting Hardware | Yes |
| Number of Gangs | 2 |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2 |
